Peak P7020 Combined S-Band Up & Down Converter

Peak Communications P7020 Combined S-Band Up & Down Converter

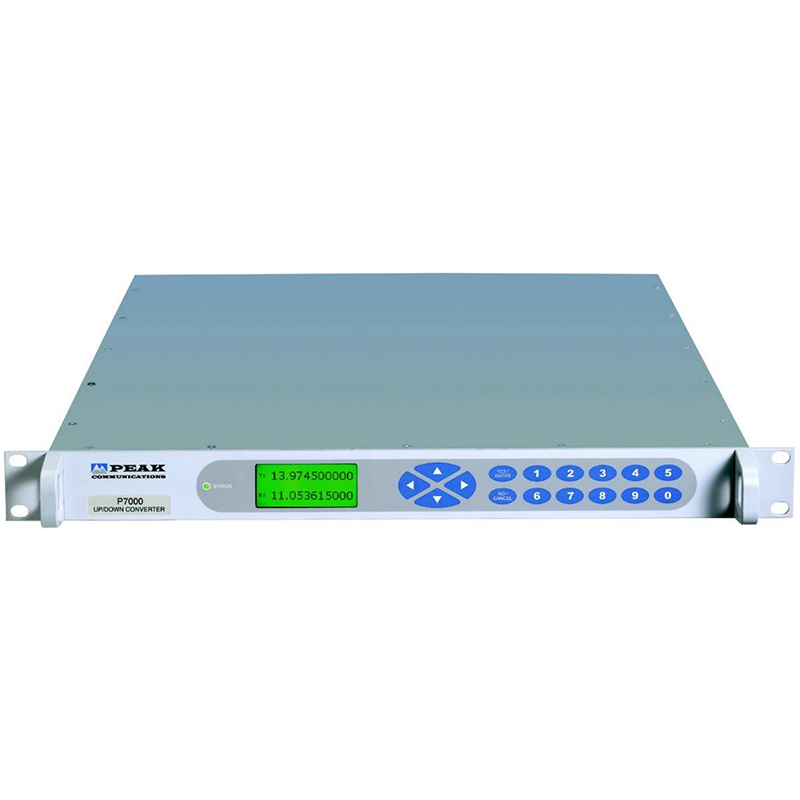

Peak Communications P7020 Combined S-Band Up & Down Converter provides fully synthesized bidirectional frequency conversion between 70/140 MHz IF and S-Band for professional satellite communication systems. The P7020 converts 70 or 140 MHz IF to 2025–2120 MHz S-Band and 2200–2300 MHz S-Band to 70 or 140 MHz IF. It features IESS-308/309 compliance, excellent phase noise and frequency stability, automatic external reference locking, software-selectable spectrum inversion, and integrated redundancy control.

Key Features:

• Combined S-Band up and down converter in a 19-inch 1U chassis

• Up converter: 70 ±18 MHz IF → 2025–2120 MHz S-Band

• Optional 140 ±36 MHz IF input

• Down converter: 2200–2300 MHz S-Band → 70 ±18 MHz IF

• Optional 140 ±36 MHz IF output

• Compliant with IESS-308/309

• Suitable for high-order modulation schemes above 100 Mbit/s

• 0–30 dB attenuation in 0.5 dB steps

• Software-selectable spectrum inversion on down converter

• Automatic external 5 or 10 MHz reference detection and locking

• Optional +22.5 VDC LNA power via S-Band cable

• Optional S-Band monitor outputs

• Integrated 1+1 and 2+1 CANBUS® redundancy control

• N+1 redundancy systems available

• Optional Ethernet, embedded web server and SNMP management
