Peak P7113 Combined Ku-Band Up & L-Band Down Converter

Peak Communications P7113 Combined Ku-Band Up & L-Band Down Converter

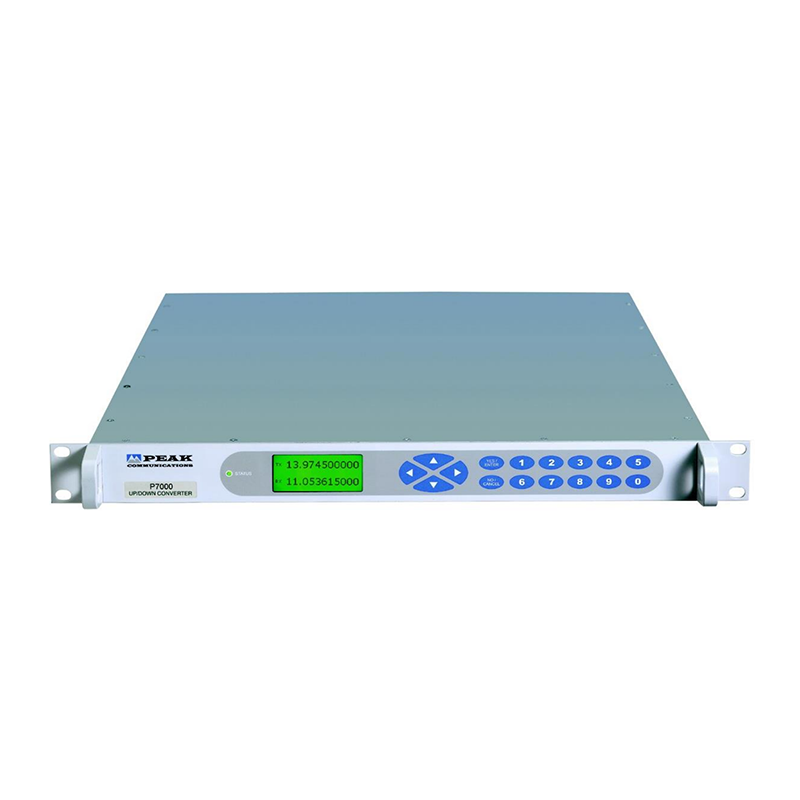

Peak Communications P7113 Combined Ku-Band Up & L-Band Down Converter integrates Ku-Band up conversion and L-Band down conversion in a single 1U rack-mounted unit. It converts 70/140 MHz IF to 13.75–14.5 GHz Ku-Band on the transmit path and 950–1750 MHz L-Band to 70/140 MHz IF on the receive path. The P7113 features IESS-308/309 compliance, adjustable attenuation, automatic external reference locking, BDC power and 10 MHz reference, spectrum inversion control, and integrated redundancy management.

Key Features:

• Combined Ku-Band up converter and L-Band down converter

• 19-inch 1U rack-mounted chassis

• TX: 70 ±18 MHz IF → 13.75–14.5 GHz Ku-Band

• Optional TX input: 140 ±36 MHz

• RX: 950–1750 MHz L-Band → 70 ±18 MHz IF

• Optional wideband RX input: 950–2150 MHz

• Optional RX output: 140 ±36 MHz

• +30 dB conversion gain with 0–30 dB attenuation

• Compliant with IESS-308/309

• Suitable for 8PSK and 16QAM modulation above 50 Mbit/s

• Software-selectable spectrum inversion on the down converter

• Automatic external 5 or 10 MHz reference detection and locking

• 10 MHz reference and +22.5 VDC output for block down converters

• Integrated 1+1 and 2+1 CANBUS® redundancy control

• N+1 redundancy systems supported

• Optional Ethernet, embedded web server and SNMP management
