Peak P7035 Series Tri-Band Ku-Band to IF Down Converters

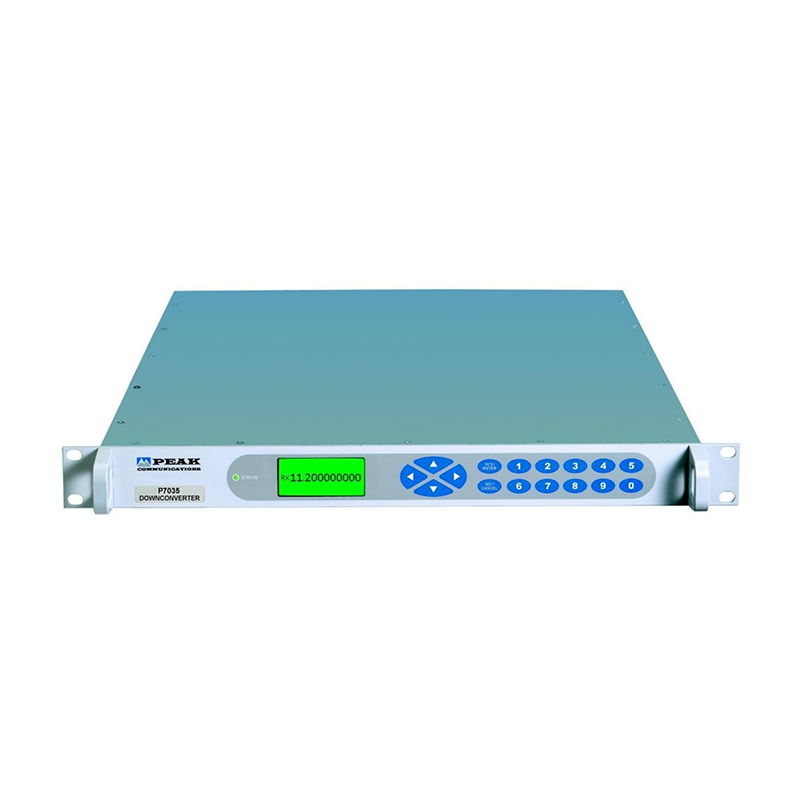

Peak Communications P7035 Series Tri-Band Ku-Band to IF Down Converters

Peak Communications P7035 Series Tri-Band Ku-Band to IF Down Converters provide fully synthesized frequency conversion from 10.70/10.95–12.75 GHz Ku-Band to 70 MHz or 140 MHz IF. Available as P7035A and P7035B with three internally switched Ku-Band ranges, the converters feature a standard L-Band interface, IESS-308/309 compliance, adjustable attenuation, automatic external reference locking, software-selectable spectrum inversion, and integrated redundancy control.

Key Features:

• Fully synthesized tri-band Ku-Band down converters

• P7035A: 10.95–12.75 GHz in three switched bands:

         10.95–11.70 GHz

         11.70–12.25 GHz

         12.25–12.75 GHz

• P7035B: 10.70–12.75 GHz in three switched bands:

         10.70–11.45 GHz

         11.45–12.25 GHz

         12.25–12.75 GHz

• Standard 70 ±18 MHz IF output

• Optional 140 ±36 MHz IF output

• Optional switchable 70/140 MHz IF

• Auxiliary L-Band output up to 950–1750 MHz in three ranges

• +60 dB conversion gain

• 0–30 dB attenuation in 0.1 dB steps

• 1 Hz synthesizer resolution

• IESS-308/309 compliant

• Suitable for high-order modulation schemes above 100 Mbit/s

• Automatic external 5 or 10 MHz reference locking

• Software-selectable spectrum inversion

• Integrated 1+1 and 2+1 CANBUS® redundancy control

• N+1 redundancy systems available

• Optional Ethernet, embedded web server and SNMP

• Optional redundant power supplies
