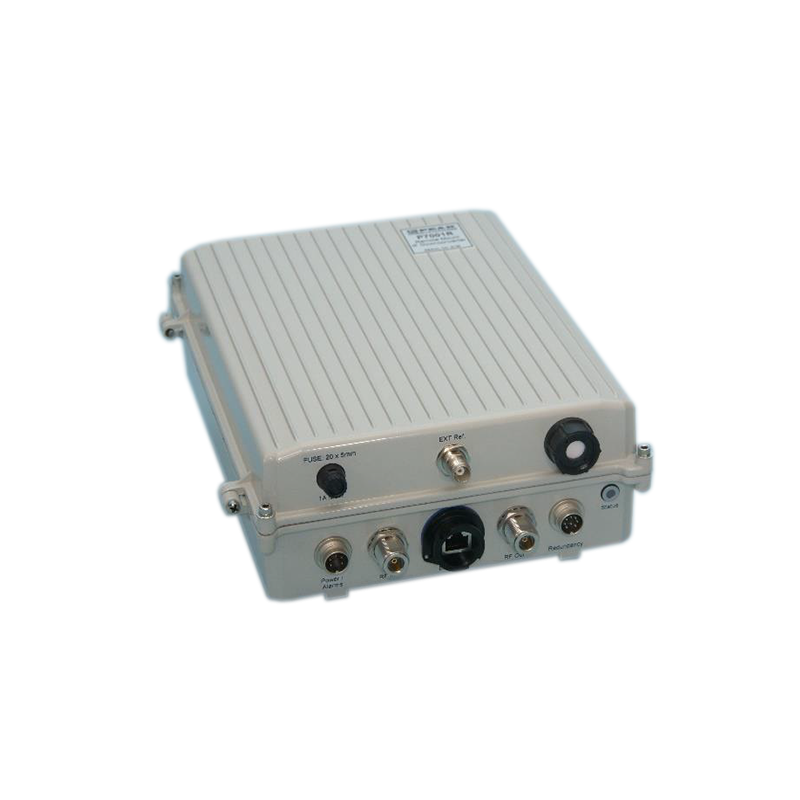

Peak P7021R Series Remote Mounted S-Band to IF Down Converter

Peak P7021R Series Remote Mounted S-Band to IF Down Converter

The Peak Communications P7021R Series consists of fully synthesised remote mounted S-Band to IF down converters designed for professional SATCOM earth stations, telemetry systems, tracking stations, and broadcast receive facilities. Housed in a rugged IP66 weatherproof enclosure, the P7021R Series converts S-Band RF signals into 70 MHz ±18 MHz or optional 140 MHz ±36 MHz IF, providing reliable outdoor frequency conversion while minimizing RF cable losses.

Available in three frequency variants, the P7021R Series supports 2200–2300 MHz, 2200–2400 MHz, and 2000–2400 MHz S-Band receive applications. The converters feature Ethernet, SNMP, RS-232/485 remote control, automatic locking to an external 5 MHz or 10 MHz reference, integrated CANBUS® 1+1 and 2+1 redundancy control, and an optional 22.5 VDC LNA supply. Fully compliant with IESS-308 / IESS-309 specifications, the P7021R Series delivers excellent phase noise, frequency stability, and RF performance for modern satellite communication and telemetry networks.

Key Features

• Fully synthesised remote mounted S-Band to IF down converter

• Rugged IP66 weatherproof outdoor enclosure

• S-Band input options:

      2200–2300 MHz (P7021RA)

      2200–2400 MHz (P7021RB)

      2000–2400 MHz (P7021RC)

• 70 MHz IF output (optional 140 MHz IF)

• Ethernet, SNMP, RS-232, and RS-485 remote control

• Automatic 5 MHz / 10 MHz external reference locking

• Integrated 1+1 and 2+1 CANBUS® redundancy controller

• Optional 22.5 VDC LNA power supply

• Compatible with FPC100, OPS27c, R1000LR, and R2000LR

• Compliant with IESS-308 / IESS-309 standards
