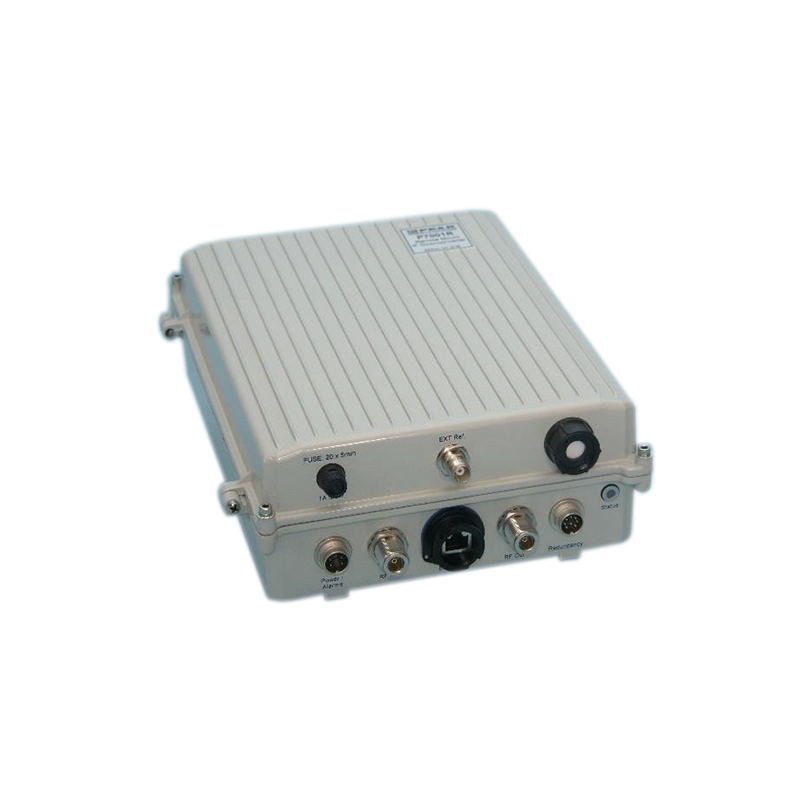

Peak P7022R Series Remote Mounted IF to S-Band Up Converter

Peak P7022R Series Remote Mounted IF to S-Band Up Converter

The Peak Communications P7022R Series consists of fully synthesised remote mounted IF to S-Band up converters designed for professional SATCOM earth stations, telemetry systems, tracking stations, and broadcast uplink facilities. Housed in a rugged IP66 weatherproof enclosure, the P7022R Series converts 70 MHz ±18 MHz or optional 140 MHz ±36 MHz IF into S-Band RF, providing reliable outdoor frequency conversion while minimizing RF cable losses.

Available in three frequency variants, the P7022R Series supports 2025–2120 MHz, 2200–2400 MHz, and 2000–2400 MHz S-Band uplink applications. The converters feature Ethernet, SNMP, RS-232/485 remote control, automatic locking to an external 5 MHz or 10 MHz reference, integrated CANBUS® 1+1 and 2+1 redundancy control, and excellent phase noise and frequency stability. Fully compliant with IESS-308 / IESS-309 specifications, the P7022R Series delivers outstanding RF performance for demanding satellite communication and telemetry networks.

Key Features

• Fully synthesised remote mounted IF to S-Band up converter

• Rugged IP66 weatherproof outdoor enclosure

• IF input:

      70 MHz ±18 MHz

      Optional 140 MHz ±36 MHz

• S-Band output options:

      2025–2120 MHz (P7022RA)

      2200–2400 MHz (P7022RB)

      2000–2400 MHz (P7022RC)

• Ethernet, SNMP, RS-232, and RS-485 remote control

• Automatic 5 MHz / 10 MHz external reference locking

• Integrated 1+1 and 2+1 CANBUS® redundancy controller

• Compatible with FPC100, OPS27c, T1000LR, and T2000LR

• Compliant with IESS-308 / IESS-309 standards
