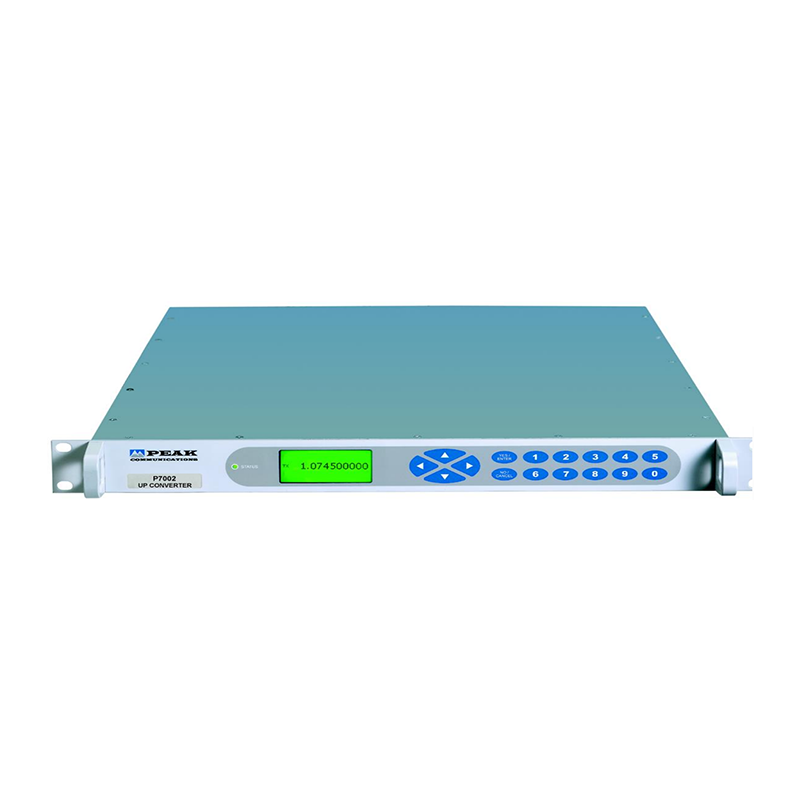

Peak P7002 IF to L-Band Frequency Up Converter

The Peak Communications P7002 Up Converter is a fully synthesised IF to L-Band up converter designed for professional satellite communication and teleport infrastructure. It converts 70 MHz ±18 MHz or 140 MHz ±36 MHz IF signals to 950–1525 MHz L-Band output, with optional extended L-Band ranges available. The converter is housed in a compact 1U rack-mount chassis, ideal for satellite earth stations, teleports, and broadcast uplink facilities.

Developed by Peak Communications Ltd, the P7002 delivers stable IF to L-Band frequency conversion with excellent RF performance suitable for high-order modulation and high-data-rate SATCOM networks. The unit supports 1+1 and 2+1 redundancy control via CANBUS, automatic 10 MHz external reference locking, and optional Ethernet remote monitoring to ensure reliable operation in satellite ground station environments.

The P7002 IF to L-Band up converter is widely used in satellite uplink chains, teleports, and earth station systems requiring reliable IF to L-Band signal conversion.
