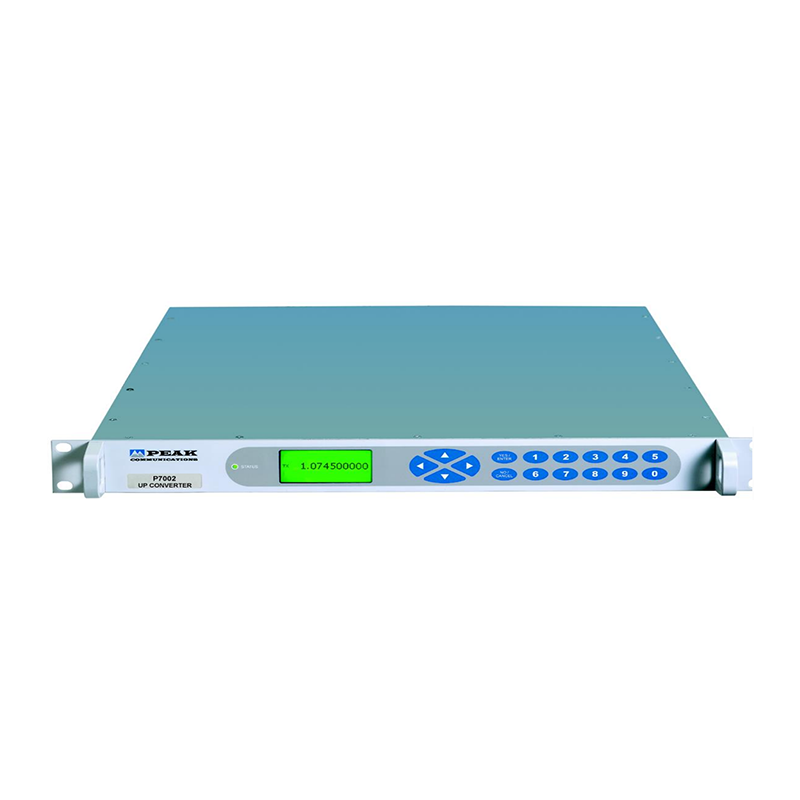

Peak P7002D Dual-Channel IF to L-Band Up Converter

The Peak Communications P7002D Up Converter is a fully synthesised dual-channel IF to L-Band up converter designed for professional satellite communication systems. It converts 70 MHz ±18 MHz or 140 MHz ±36 MHz IF signals to 950–1525 MHz L-Band output, supporting two independent channels within a compact 1U rack-mount chassis suitable for satellite earth stations, teleports, and broadcast uplink facilities.

Developed by Peak Communications Ltd, the P7002D provides stable IF to L-Band frequency conversion with excellent RF performance for high-order modulation and high-data-rate SATCOM networks. Each channel can be configured independently, and the unit supports 1+1 and 2+1 redundancy control via CANBUS, automatic 10 MHz external reference locking, and optional Ethernet remote monitoring for reliable satellite ground station operation.

The P7002D dual-channel up converter is widely used in satellite uplink chains, teleports, and earth station systems requiring reliable IF to L-Band signal conversion.
