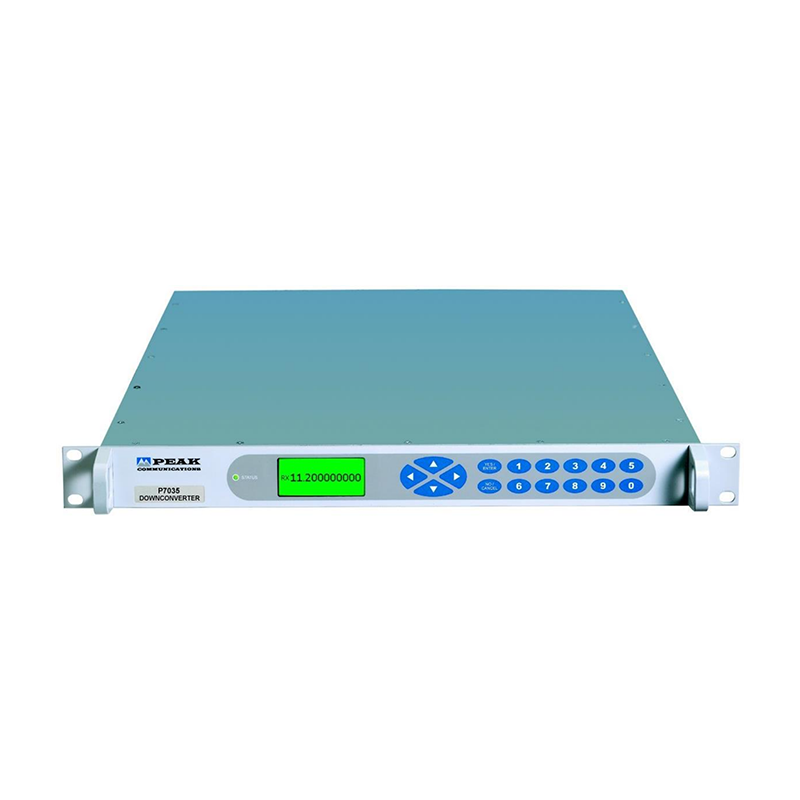

Peak P7035 Series Ku-Band to IF Down Converter

Peak P7035 Series Ku-Band to IF Down Converter

The Peak Communications P7035 Series Ku-Band to IF Down Converters are fully synthesised professional satellite frequency converters designed for SATCOM earth stations, teleports, and broadcast reception systems. These high-performance converters translate Ku-Band RF signals into 70 MHz or 140 MHz IF outputs, enabling reliable signal processing for satellite receivers and modem systems.

The P7035 series supports wide Ku-Band coverage with two model variants: P7035A (10.95 – 12.75 GHz) and P7035B (10.70 - 12.75 GHz).

Each model operates in three switchable sub-bands, providing flexible satellite coverage across common Ku-Band downlink ranges. The converters include a standard L-Band interface, enabling mixed 70 MHz / 140 MHz / L-Band infrastructures while allowing future upgrades to L-Band networks.

Designed for demanding satellite communication environments, the P7035 series delivers excellent phase noise performance, high dynamic range, and precise frequency stability. Integrated CANBUS redundancy control, automatic locking to an external 10 MHz reference, and an intuitive front-panel graphical interface ensure reliable operation in professional ground station deployments.
