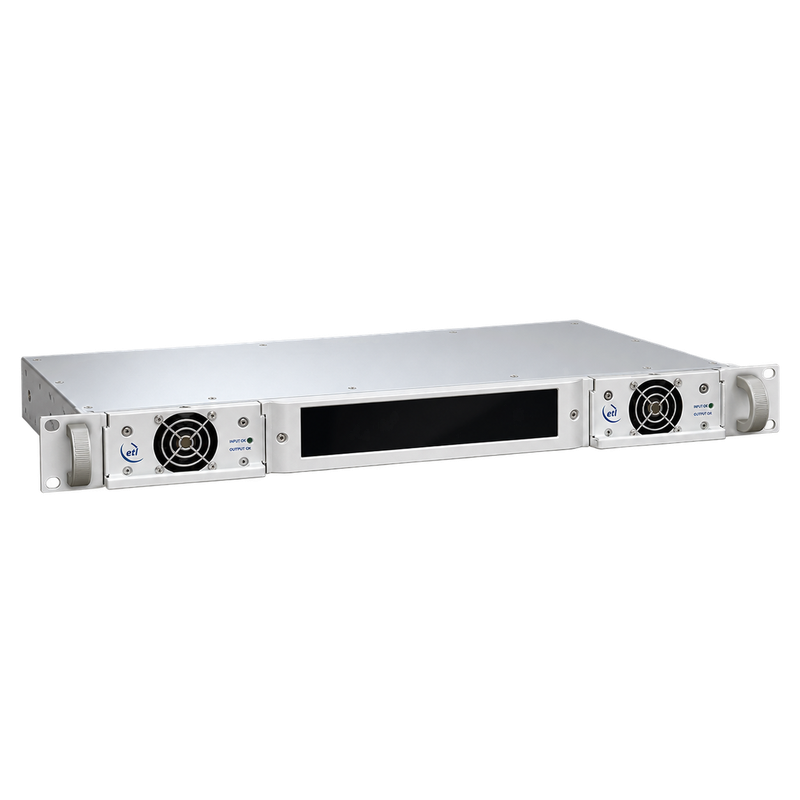

ETL Systems GENUS GNS-106-1U 1U Modular RF Chassis

ETL Systems GENUS GNS-106-1U 1U Modular RF Chassis

The ETL Systems GENUS GNS-106-1U houses up to 17 compatible RF modules in a compact 19-inch rackmount chassis. Operators can combine frequency converters, redundancy switches, RF over fibre, matrices, amplifiers and BUC/LNB power supply modules to suit their system. Dual redundant hot-swappable power supplies and field-serviceable components support system maintenance, with local touchscreen and remote Ethernet control.

Chassis Format: 1U, 19-inch rackmount
Module Capacity: Up to 17 modules; actual capacity depends on module type and width
Compatible Module Functions: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches, test loop translators and splitters/combiners
AC Input: 85–264 VAC, 50/60 Hz
Maximum Power Consumption: 275 W at steady state
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
RF Modules: Field-replaceable; compatible modules can be inserted while the chassis is in service
Local Control: Front-panel capacitive HMI touchscreen
Remote Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server
Secure Protocols: SNMPv3 and HTTPS
Reference Options: Optional internal and external 10 MHz reference sources
Field-Serviceable Components: RF modules, CPU, HMI and optional reference-source components
Dimensions: 1U high × 550 mm deep × 19 inches wide
Weight: <10 kg
Finish: RAL 9003 white, semi-matte
Operating Temperature: 0°C to +45°C
Installation: Indoor use only
Humidity: 20–90%, non-condensing

Key Features

• Up to 17 compatible modules in a compact 1U chassis

• Flexible combinations of RF signal-processing and distribution modules

• Dual redundant hot-swappable power supplies

• Field-serviceable RF modules, CPU and HMI

• Local capacitive touchscreen control

• Remote Ethernet control with SNMPv3 and HTTPS

• Optional internal and external 10 MHz reference sources

RF modules and reference-source options must be specified for the required configuration. Please confirm module compatibility, available capacity and included components when requesting a quotation. RF modules are sold separately unless included in the quoted configuration.
