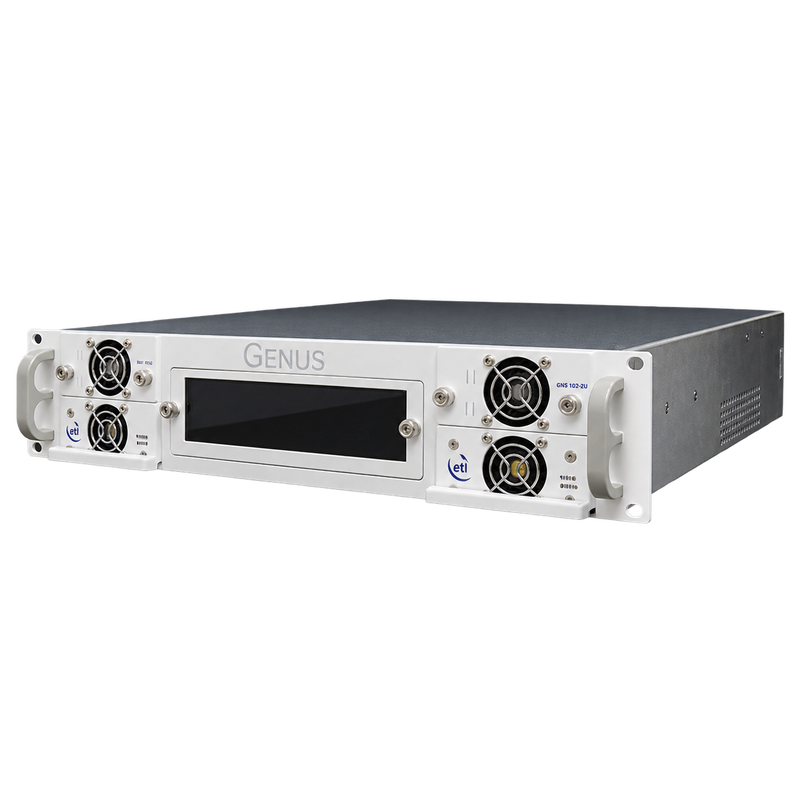

ETL Systems GENUS GNS-102-2U 2U Modular RF Chassis

ETL Systems GENUS GNS-102-2U 2U Modular RF Chassis

The ETL Systems GENUS GNS-102-2U accommodates up to 17 compatible RF modules in a 2U rackmount chassis for flexible satellite ground station signal management.

Combine amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators to suit your system. Dual redundant hot-swappable power supplies and field-serviceable components support maintenance, with local touchscreen and remote Ethernet control.

Chassis Format: 2U, 19-inch rackmount
Module Capacity: Up to 17 compatible RF modules
Compatible Module Functions: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators
AC Input: 85–264 VAC, 50/60 Hz
Maximum Power Consumption: 275 W at steady state
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
RF Modules: Compatible modules can be inserted while the chassis is in service
Local Control: Front-panel capacitive HMI touchscreen
Remote Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server
Secure Protocols: SNMPv3 and HTTPS
Field-Serviceable Components: RF modules, CPU, HMI and fans
Dimensions: 2U high × 550 mm deep × 19 inches wide
Weight: <10 kg
Finish: RAL 9003 white, semi-matte
Operating Temperature: 0°C to +45°C
Storage Temperature: −20°C to +75°C, unpowered
Installation: Indoor use only
Humidity: 20–90% RH, non-condensing

Key Features

• Supports up to 17 compatible RF modules in a compact 2U chassis

• Flexible combinations of RF signal-processing and distribution modules

• Dual redundant hot-swappable power supplies

• Field-serviceable RF modules, CPU, HMI and fans

• Local touchscreen control and remote Ethernet monitoring

• Secure communications with SNMPv3 and HTTPS

RF modules are sold separately unless included in the quoted configuration. Please confirm module compatibility, available capacity and included components when requesting a quotation.
