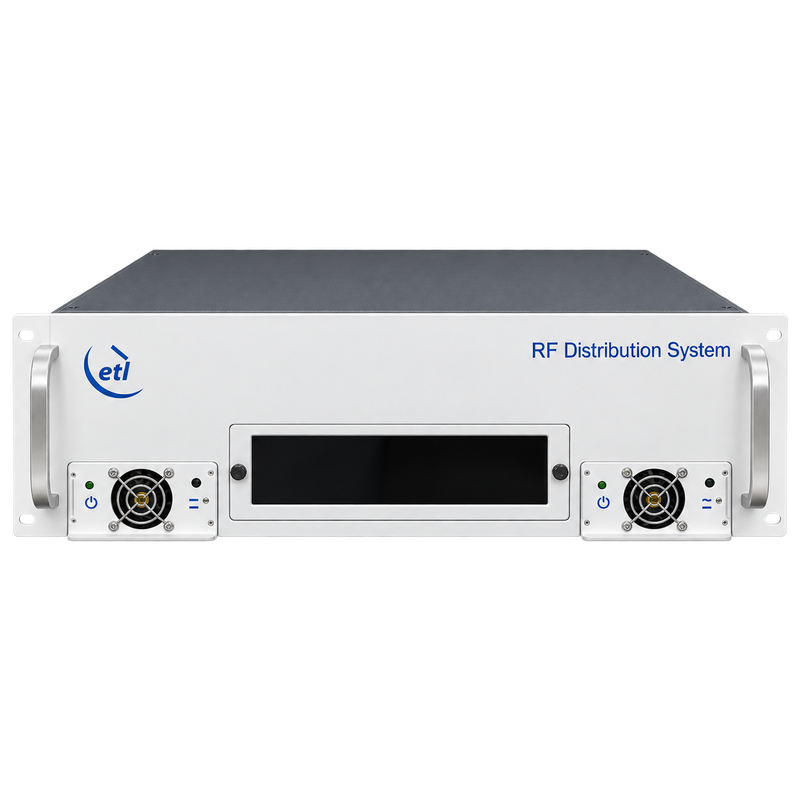

ETL Systems GENUS GNS-103-3U 3U Modular RF Chassis

ETL Systems GENUS GNS-103-3U 3U Modular RF Chassis

The ETL Systems GENUS GNS-103-3U accommodates up to 17 compatible RF modules in a 3U rackmount chassis for flexible L-Band signal splitting and combining.

The chassis supports high-performance 4-way active splitter and combiner modules, with fixed or variable gain and slope options, optional dual redundant amplifiers and LNB powering. Dual redundant hot-swappable power supplies and field-serviceable components support system maintenance, while local touchscreen and remote Ethernet interfaces provide control and monitoring.

Chassis Format: 3U, 19-inch rackmount
Module Capacity: Up to 17 compatible RF modules
RF Module Options: 4-way active L-Band splitters and combiners
Module Features: Gain and slope options, optional dual redundant amplifiers and LNB powering; availability depends on the selected module
AC Input: 85–264 VAC, 50/60 Hz
Maximum Power Consumption: 275 W at steady state
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
RF Modules: Compatible modules can be inserted while the chassis is in service
Local Control: Front-panel capacitive HMI touchscreen
Remote Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server
Secure Protocols: SNMPv3 and HTTPS
Field-Serviceable Components: RF modules, CPU, HMI and fans
Dimensions: 3U high × 550 mm deep × 19 inches wide
Weight: <10 kg
Finish: RAL 9003 white, semi-matte
Operating Temperature: 0°C to +45°C
Storage Temperature: −20°C to +75°C, unpowered
Installation: Indoor use only
Humidity: 20–90% RH, non-condensing

Key Features

• Houses up to 17 compatible RF modules in a 3U chassis

• Supports 4-way active L-Band splitter and combiner modules

• Module options include gain adjustment, slope compensation and LNB powering

• Dual redundant hot-swappable power supplies

• Field-serviceable RF modules, CPU, HMI and fans

• Local touchscreen control and remote Ethernet monitoring

• Secure communications with SNMPv3 and HTTPS

RF modules are sold separately unless included in the quoted configuration. RF specifications and optional features depend on the selected module. Please confirm module compatibility, available capacity and included components when requesting a quotation.
