ETL Systems GENUS GNS-186-1U 1U Modular RF Chassis with 100 MHz Reference

ETL Systems GENUS GNS-186-1U 1U Modular RF Chassis with 100 MHz Reference

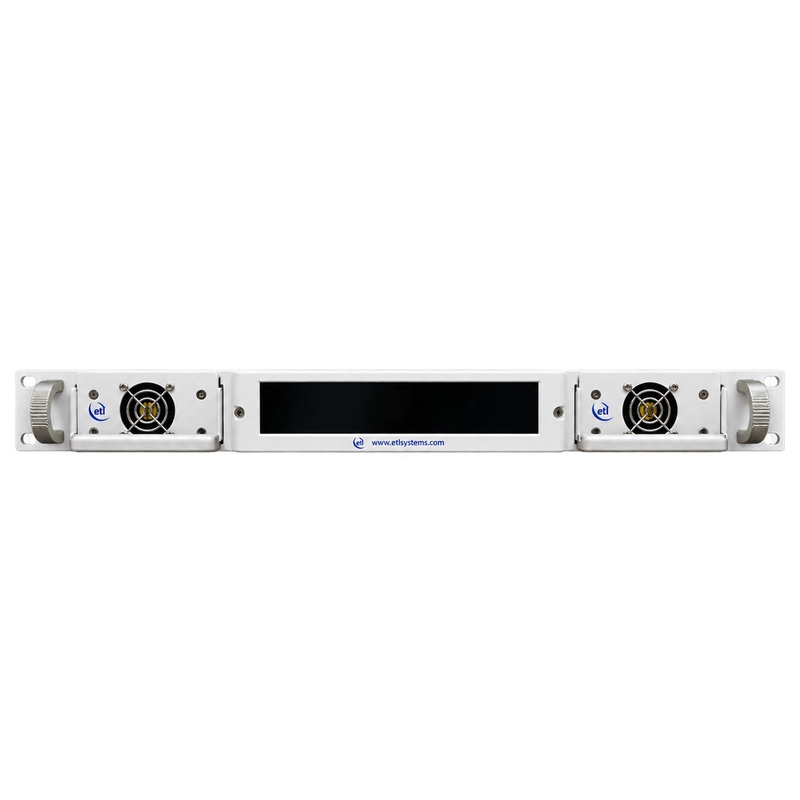

The ETL Systems GENUS GNS-186-1U houses up to 17 compatible RF modules in a compact 1U chassis with an integrated high-stability 100 MHz reference source.

Configure the chassis with compatible RF modules to suit your satellite ground station. The internal ovenised oscillator distributes the reference to compatible modules, while optional cards provide external reference input and reference outputs. Dual redundant power supplies and local or remote control support reliable operation and convenient maintenance.

Chassis Format: 1U, 19-inch rackmount
Module Capacity: Up to 17 modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches, test loop translators and splitters/combiners
Internal Reference: Integrated high-stability ovenised 100 MHz oscillator and distribution module
Reference Accuracy & Stability: Frequency setting: ±0.03 kHz; temperature stability: <±0.005 kHz; aging: ±0.03 kHz/year
Reference Options: Optional slot-17 external input card and slot-16 reference output card; 10 MHz output available only through slot 16
Reference Selection: Internal or external source, with user-settable automatic switchover
Power: 85–264 VAC, 50/60 Hz; maximum consumption 275 W at steady state
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
Control & Monitoring: Capacitive touchscreen, RJ45 Ethernet, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Serviceability: Field-serviceable RF modules, HMI, CPU and internal reference module; RF module hot-swap capability depends on module type
Dimensions & Weight: 1U high × 550 mm deep × 19 inches wide; <10 kg
Operating Environment: Indoor use, 0°C to +45°C; 20–90% RH, non-condensing

Key Features

• Flexible RF module configurations in a compact 1U chassis

• Included high-stability 100 MHz reference source

• Optional external reference input and reference outputs

• Automatic reference-source switching

• Dual redundant hot-swappable power supplies

• Local touchscreen and secure remote Ethernet control

The internal 100 MHz reference source is included. RF modules and optional reference input/output cards are sold separately unless included in the quoted configuration. Please confirm module compatibility, available capacity and included components when requesting a quotation.
