ETL Systems GENUS GNS-196-1U 1U Modular RF Chassis with 10 MHz Reference

ETL Systems GENUS GNS-196-1U 1U Modular RF Chassis with 10 MHz Reference

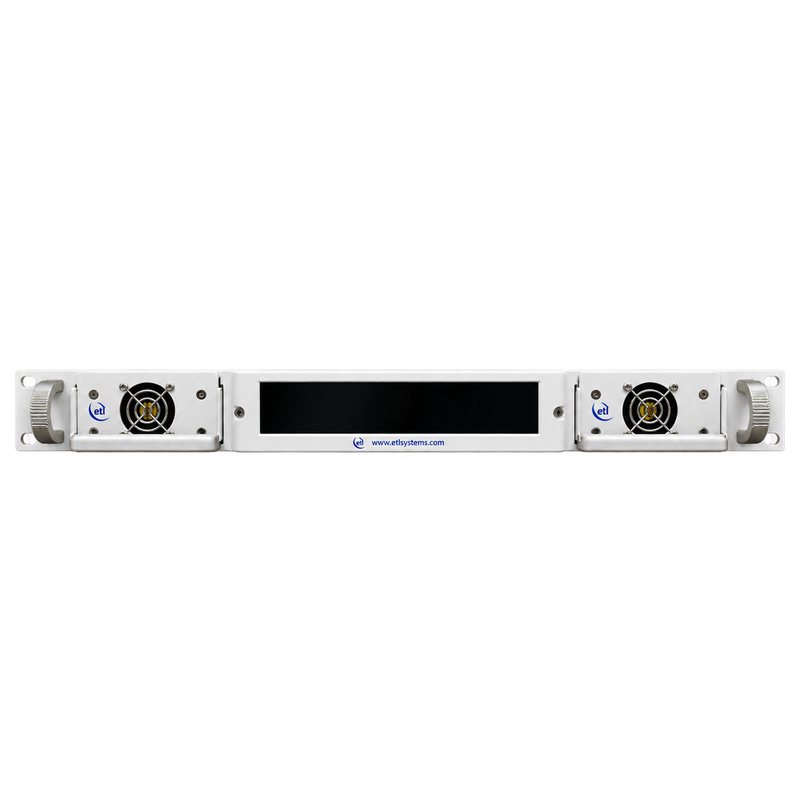

The ETL Systems GENUS GNS-196-1U houses up to 17 compatible RF modules in a compact 1U chassis with an integrated high-stability 10 MHz reference source.

Configure the chassis with compatible RF modules for satellite ground station signal processing and distribution. The internal ovenised oscillator provides a stable reference, with an optional external reference input and user-settable automatic source switching. Dual redundant power supplies, field-serviceable components and local or remote control support reliable operation and convenient maintenance.

Chassis Format: 1U, 19-inch rackmount
Module Capacity: Up to 17 modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches, test loop translators and splitters/combiners
Internal Reference: Integrated high-stability ovenised 10 MHz oscillator and distribution module
Reference Accuracy & Stability: Frequency setting: ±0.001 kHz; temperature stability: <±0.00005 kHz; aging: ±0.0005 kHz/year
Reference Output: Sinewave; output power range −10 to +10 dBm (±2 dBm)
External Reference & Switching: Optional slot-17 external reference input card; user-settable automatic internal/external switchover on an RF power alarm
Power: 85–264 VAC, 50/60 Hz; maximum consumption 275 W at steady state
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
Control & Monitoring: Capacitive touchscreen, RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Serviceability: Field-serviceable RF modules, HMI, CPU and internal reference module; RF module hot-swap capability depends on module type
Dimensions & Weight: 1U high × 550 mm deep × 19 inches wide; <10 kg
Operating Environment: Indoor use, 0°C to +45°C; 20–90% RH, non-condensing

Key Features

• Flexible RF module configurations in a compact 1U chassis

• Included high-stability ovenised 10 MHz reference source

• Reference output power range of −10 to +10 dBm

• Optional external reference input with automatic source switching

• Dual redundant hot-swappable power supplies

• Local touchscreen and secure remote Ethernet control

The internal 10 MHz reference source is included. RF modules and the optional external reference input card are sold separately unless included in the quoted configuration. Please confirm module compatibility, available capacity and included components when requesting a quotation.
