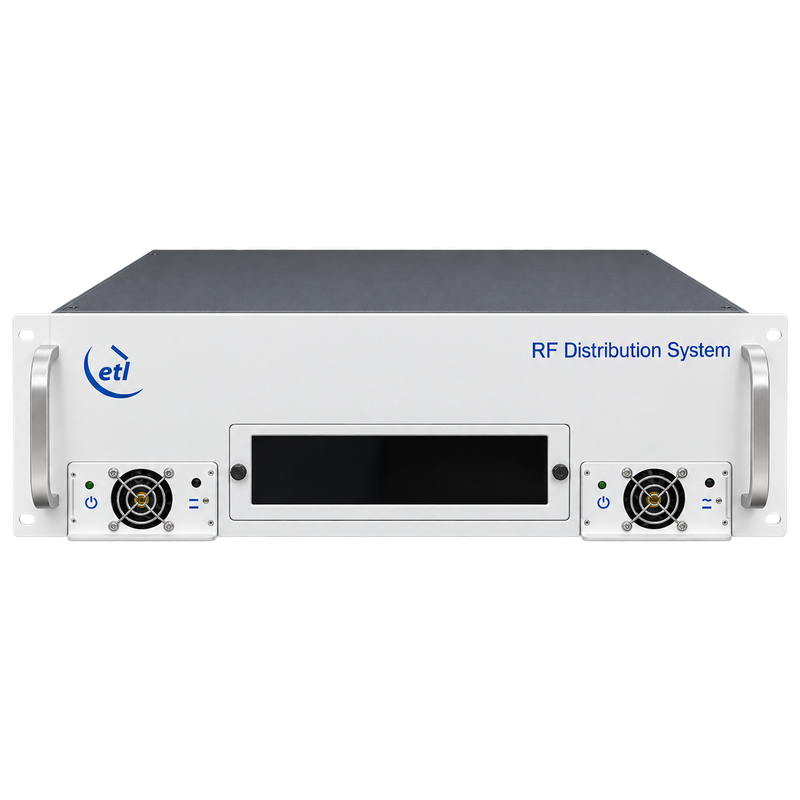

ETL Systems GENUS GNS-193-3U 3U Modular RF Chassis with 10 MHz Reference

ETL Systems GENUS GNS-193-3U 3U Modular RF Chassis with 10 MHz Reference

The ETL Systems GENUS GNS-193-3U accommodates up to 17 compatible RF modules in a 3U rackmount chassis with an integrated high-stability 10 MHz reference source for satellite ground stations.

Configure the chassis with high-performance 4-way active L-Band splitter and combiner modules. Module options include fixed or variable gain and slope, dual redundant amplifiers and LNB powering. The internal ovenised oscillator provides reference distribution, with optional external 10 MHz input and automatic reference-source switching. Dual redundant power supplies and local or remote control support reliable operation.

Chassis Format: 3U, 19-inch rackmount
Module Capacity: Up to 17 compatible RF modules
RF Module Options: 4-way active L-Band splitters and combiners
Module Features: Fixed or variable gain and slope options, optional dual redundant amplifiers and LNB powering; availability depends on the selected module
Internal Reference: Integrated high-stability ovenised 10 MHz oscillator and distribution module
Reference Accuracy & Stability: Frequency setting: ±0.001 kHz; temperature stability: <±0.00005 kHz; aging: ±0.0005 kHz/year
Reference Output: Sinewave; output power range −10 to +10 dBm (±2 dBm), adjustable in 1 dB steps (±0.5 dB)
External Reference & Switching: Optional slot-17 external 10 MHz input card; user-settable automatic internal/external source switching
Power: 85–264 VAC, 50/60 Hz; maximum consumption 275 W at steady state
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
Control & Monitoring: Capacitive touchscreen, RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Serviceability: Field-serviceable RF modules, CPU, HMI and fans; user-replaceable internal reference module
Dimensions & Weight: 3U high × 550 mm deep × 19 inches wide; <10 kg
Operating Environment: Indoor use, 0°C to +45°C; 20–90% RH, non-condensing

Key Features

• Supports up to 17 compatible RF modules in a 3U chassis

• Compatible with 4-way active L-Band splitter and combiner modules

• Included high-stability ovenised 10 MHz reference source

• Adjustable reference output power

• Optional external reference input with automatic source switching

• Dual redundant hot-swappable power supplies

• Local touchscreen and secure remote Ethernet control

The internal 10 MHz reference source is included. RF modules and the optional external reference input card are sold separately unless included in the quoted configuration. Module features depend on the selected configuration. Please confirm compatibility, available capacity and included components when requesting a quotation.
