ETL Systems GENUS GNR-201-1U 1U Redundant Modular RF Chassis

ETL Systems GENUS GNR-201-1U 1U Redundant Modular RF Chassis

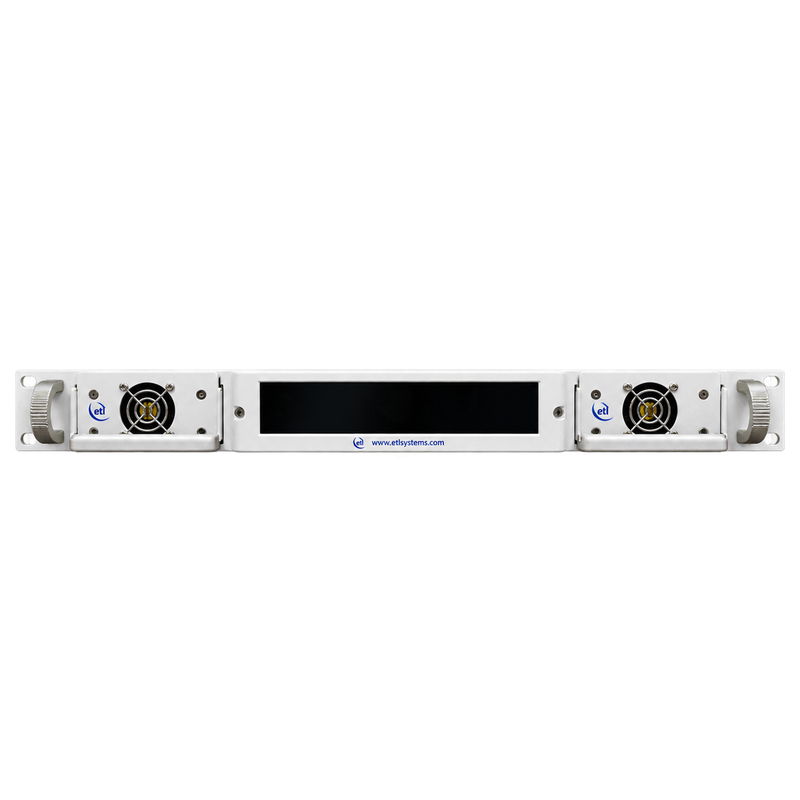

The ETL Systems GENUS GNR-201-1U houses up to 17 compatible RF modules in a compact 1U rackmount chassis with dual redundant hot-swappable power supplies.

Configure the chassis with amplifiers, frequency converters, matrices, RF over fibre, redundancy switches and other compatible modules for satellite ground station signal management. Its modular design helps reduce rack space and spare-part requirements, while field-replaceable components and local or remote control simplify maintenance. Optional internal and external 10 MHz reference options support system configuration requirements.

Chassis Format: 1U, 19-inch rackmount
Module Capacity: Up to 17 modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches, test loop translators and splitters/combiners
Redundancy: Dual redundant chassis power supplies; RF signal-path redundancy depends on the selected modules and configuration
Reference Options: Optional user-replaceable internal 10 MHz reference and distribution module, with an external 10 MHz input card also available
Power: 85–264 VAC, 50/60 Hz; maximum consumption 275 W at steady state
Power Supplies: Alarmed, diode-OR and hot-swappable
Local Control: Front-panel capacitive HMI touchscreen
Remote Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Serviceability: Field-replaceable RF modules, CPU, HMI and optional reference components
Dimensions & Weight: 1U high × 550 mm deep × 19 inches wide; <10 kg
Operating Environment: Indoor use, 0°C to +45°C; 20–90% RH, non-condensing

Key Features

• Flexible combinations of compatible RF modules in a compact 1U chassis

• Dual redundant hot-swappable power supplies

• Supports RF redundancy configurations using compatible modules

• Optional internal and external 10 MHz reference options

• Field-replaceable components for convenient maintenance

• Local touchscreen and secure remote Ethernet control

RF modules and optional 10 MHz reference components are sold separately unless included in the quoted configuration. RF signal-path redundancy requires the appropriate modules and configuration. Please confirm compatibility, available capacity and included components when requesting a quotation.
