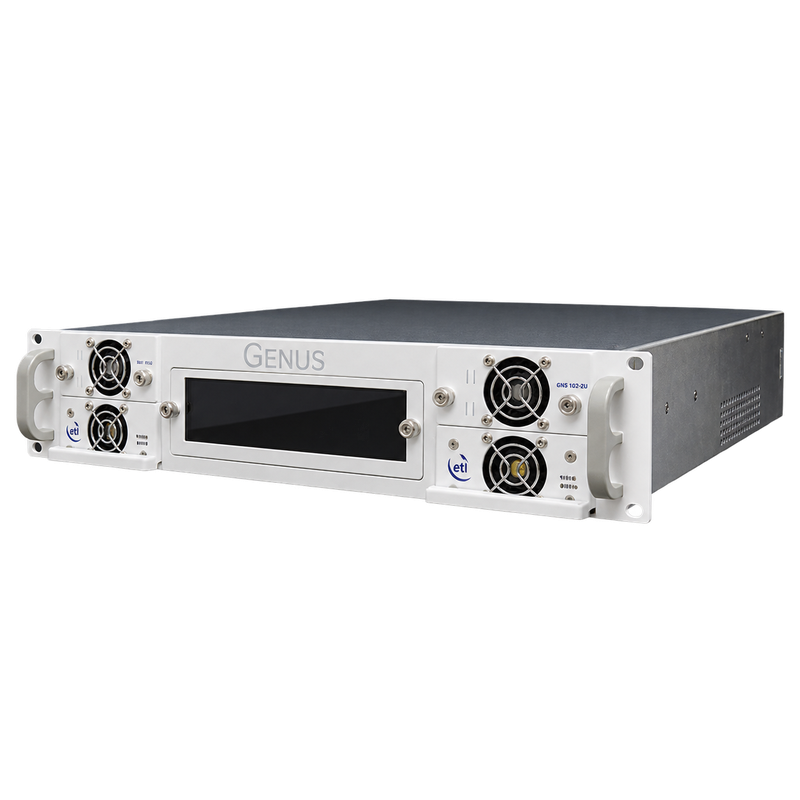

ETL Systems GENUS GNR-202-2U 2U Redundant Modular RF Chassis

ETL Systems GENUS GNR-202-2U 2U Redundant Modular RF Chassis

The ETL Systems GENUS GNR-202-2U accommodates up to 17 compatible RF modules in a 2U rackmount chassis with dual redundant hot-swappable power supplies.

Configure the chassis with amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators for satellite ground station signal management. Field-serviceable modules, CPU, HMI and fans simplify maintenance, while local touchscreen and secure remote Ethernet interfaces provide control and monitoring.

Chassis Format: 2U, 19-inch rackmount
Module Capacity: Up to 17 compatible RF modules
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators
Redundancy: Dual redundant chassis power supplies; RF signal-path redundancy depends on the selected modules and configuration
Power: 85–264 VAC, 50/60 Hz; maximum consumption 275 W at steady state
Power Supplies: Alarmed, diode-OR and hot-swappable
Local Control: Front-panel capacitive HMI touchscreen
Remote Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Serviceability: Field-serviceable RF modules, CPU, HMI and fans; compatible RF modules can be inserted while the chassis is in service
Dimensions & Weight: 2U high × 550 mm deep × 19 inches wide; <10 kg
Operating Environment: Indoor use, 0°C to +45°C; 20–90% RH, non-condensing

Key Features

• Supports up to 17 compatible RF modules in a 2U chassis

• Flexible combinations of RF signal-processing and distribution modules

• Dual redundant hot-swappable power supplies

• Supports redundancy configurations using compatible RF modules

• Field-serviceable RF modules, CPU, HMI and fans

• Local touchscreen and secure remote Ethernet control

RF modules are sold separately unless included in the quoted configuration. RF signal-path redundancy requires the appropriate modules and configuration. Please confirm module compatibility, available capacity and included components when requesting a quotation.
