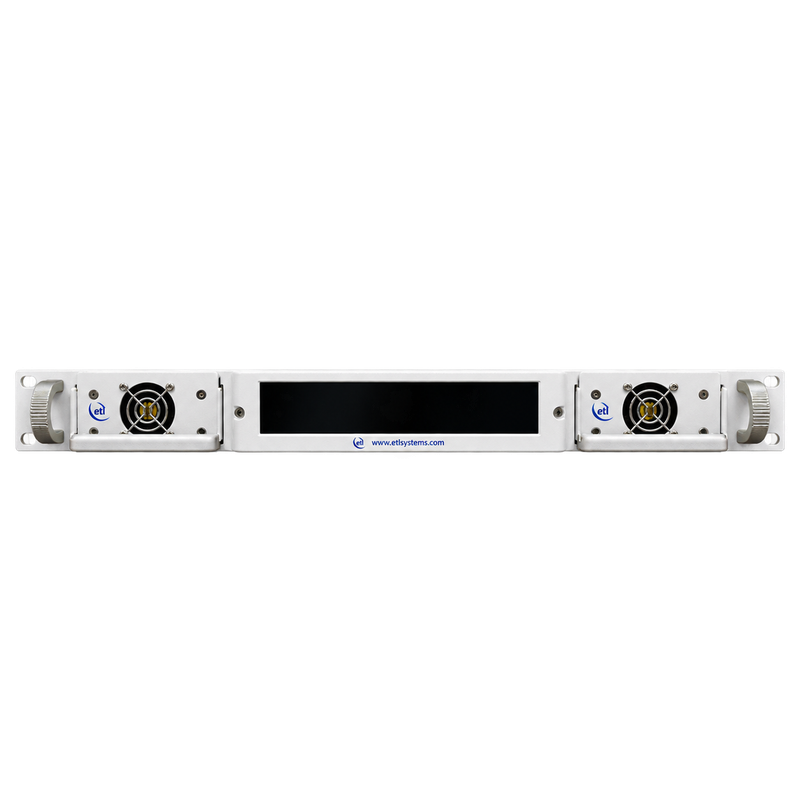

The ETL Systems GENUS GNR-291-1U houses up to 17 compatible RF modules in a compact 1U rackmount chassis with an internal 10 MHz reference source and dual redundant power supplies.

Configure the modular chassis with amplifiers, frequency converters, matrices, RF over fibre, redundancy switches and other compatible modules for satellite ground station signal management. The high-stability ovenised oscillator provides reference distribution, with optional external 10 MHz input and automatic reference-source switching. Field-replaceable components, local touchscreen control and secure remote monitoring simplify operation and maintenance.

Chassis Format: 1U, 19-inch rackmount
Module Capacity: Up to 17 modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches, test loop translators and splitters/combiners
Redundancy: Dual redundant chassis power supplies; RF signal-path redundancy depends on the selected modules and configuration
Internal Reference: High-stability ovenised 10 MHz oscillator and distribution module
Reference Accuracy & Stability: Frequency setting: ±0.001 kHz; temperature stability: <±0.00005 kHz; aging: ±0.0005 kHz/year
Reference Output: Sinewave; output power range −10 to +10 dBm (±2 dBm)
External Reference & Switching: Optional slot-17 external 10 MHz input card; user-settable automatic internal/external switchover on an RF power alarm
Power: 85–264 VAC, 50/60 Hz; maximum consumption 275 W at steady state
Power Supplies: Alarmed, diode-OR and hot-swappable
Control & Monitoring: Capacitive touchscreen, RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Serviceability: Field-replaceable RF modules, CPU, HMI and reference components
Dimensions & Weight: 1U high × 550 mm deep × 19 inches wide; <10 kg
Operating Environment: Indoor use, 0°C to +45°C; 20–90% RH, non-condensing

Key Features

• Flexible RF module configurations in a compact 1U chassis

• Internal high-stability ovenised 10 MHz reference source

• Optional external reference input with automatic source switching

• Dual redundant hot-swappable power supplies

• Supports RF redundancy configurations using compatible modules

• Field-replaceable components for convenient maintenance

• Local touchscreen and secure remote Ethernet control

RF modules and the optional external reference input card are sold separately unless included in the quoted configuration. RF signal-path redundancy requires the appropriate modules and configuration. Please confirm available capacity, reference components and included modules when requesting a quotation.
