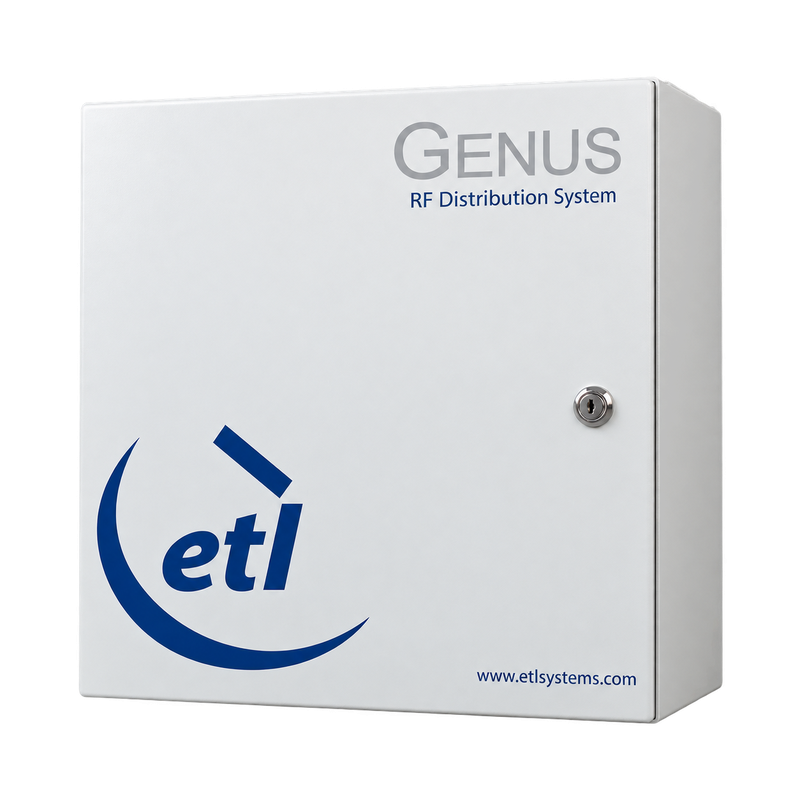

The ETL Systems GENUS GNS-381-ODU houses up to 19 compatible RF modules in an outdoor enclosure with an integrated 100 MHz reference source and dual redundant power supplies.

Configure the modular outdoor unit with amplifiers, frequency converters, matrices, RF over fibre, redundancy switches and other compatible modules for satellite ground station signal management. Its high-stability ovenised oscillator provides reference distribution, with internal/external source selection and automatic switching. Optional heating and air conditioning extend the operating temperature range, while secure Ethernet control supports remote operation.

Chassis Type: Modular outdoor unit, suitable for outdoor or indoor installation
Module Capacity: Up to 19 RF modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators
Internal Reference: Integrated high-stability ovenised 100 MHz oscillator and distribution module
Reference Accuracy & Stability: Frequency setting: ±0.03 kHz; temperature stability: <±0.0005 kHz; aging: ±0.005 kHz/year
Reference Output: Sinewave; 100 MHz: +2 dBm typ.; 10 MHz: +5 dBm typ., with 10 MHz output available only through slot 16
Reference Selection: Internal oscillator or customer-supplied external reference through the EXT input; user-settable automatic source switching
AC Input: 100–240 VAC, 50/60 Hz; air-conditioned versions require the appropriate supply-voltage option
Power Supplies: Dual redundant, alarmed, diode-OR and hot-swappable
Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS; optional capacitive touchscreen
Serviceability: Hot-swappable RF modules and power supplies; field-serviceable CPU and user-replaceable internal reference module
Enclosure Protection: IP65 standard; IP54 with air conditioning
Operating Environment: −20°C to +45°C standard; 20–90% RH, non-condensing
Dimensions & Weight: 500 mm high × 500 mm wide × 300 mm deep; weight <18 kg, subject to manufacturer confirmation; dimensions may vary with air conditioning

Temperature Options

GNS-381-ODU: −20°C to +45°C; standard enclosure

GNS-381-ODU-H: −40°C to +45°C; heater fitted

GNS-381-ODU-A: −20°C to +65°C; air conditioning fitted

GNS-381-ODU-AH: −40°C to +65°C; air conditioning and heater fitted

For air-conditioned versions, the specified maximum ambient air temperature is +55°C, with local spot temperatures up to +65°C.

Key Features

• Outdoor enclosure supporting up to 19 compatible RF modules

• Integrated high-stability 100 MHz reference source

• Internal/external reference selection with automatic switching

• Dual redundant hot-swappable power supplies

• Optional heater, air conditioning and local touchscreen

• Secure remote Ethernet control and monitoring

RF modules and optional temperature-control equipment are sold separately unless included in the quoted configuration. Please confirm module compatibility, reference interfaces, supply voltage, enclosure dimensions, weight and total power consumption when requesting a quotation.
