ETL Systems GENUS GNS-305-ODU Compact Outdoor Modular RF Chassis

ETL Systems GENUS GNS-305-ODU Compact Outdoor Modular RF Chassis

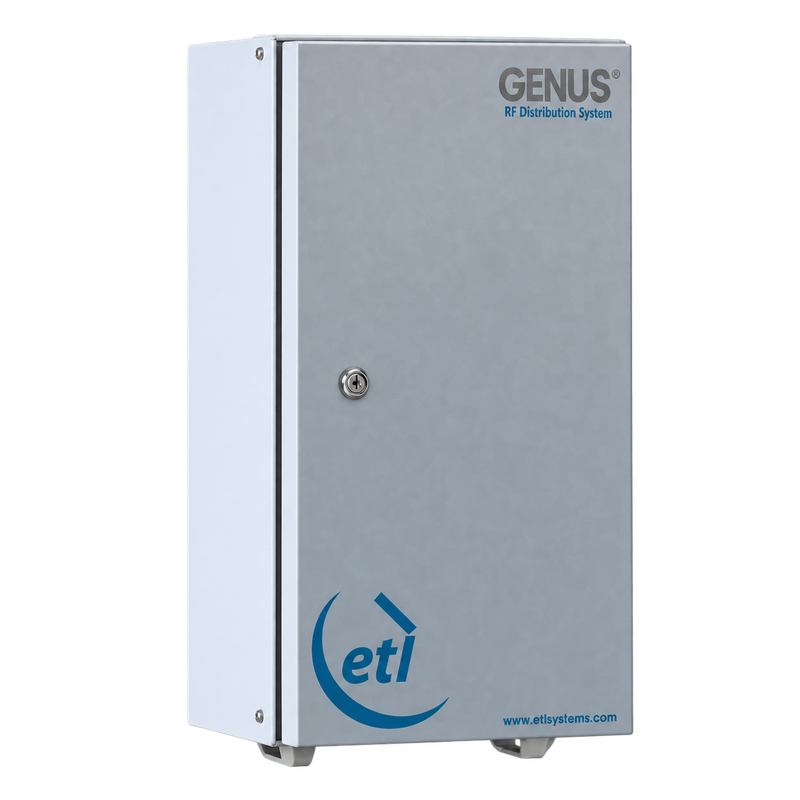

The ETL Systems GENUS GNS-305-ODU houses up to 8 compatible GENUS RF modules in a compact IP65 outdoor enclosure, with additional space for a 1+1 redundancy switch module.

Configure the outdoor unit with amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre and test loop translators for satellite ground station signal management. Dual 12 VDC power inputs, field-serviceable components and secure remote Ethernet control support flexible installation and convenient maintenance.

Chassis Type: Compact outdoor enclosure for compatible GENUS 1U modules
Module Capacity: Up to 8 RF modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators
Redundancy Options: Additional space for a 1+1 redundancy switch module; configuration must be confirmed
Power Input: Dual 12 VDC inputs; outdoor AC-to-DC power supplies available separately
Maximum Power Consumption: 100 W at steady state
Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS
Local Control: Optional capacitive HMI touchscreen
Serviceability: Field-serviceable RF modules and CPU; compatible RF modules can be inserted while the ODU is in service
Enclosure Protection: IP65, suitable for outdoor or indoor installation
Operating Temperature: −25°C to +60°C; maximum ambient air temperature +55°C, with solar spot heating up to +60°C; upper limit may be derated depending on module selection and loading
Dimensions & Weight: 450 mm high × 300 mm wide × 175 mm deep; <10 kg
Humidity: 20–100% RH, non-condensing

Key Features

• Compact IP65 enclosure supporting up to 8 compatible RF modules

• Additional space for a 1+1 redundancy switch module

• Flexible combinations of RF signal-processing and distribution modules

• Dual 12 VDC power inputs

• Field-serviceable RF modules and CPU

• Secure remote Ethernet control and optional local touchscreen

RF modules, the redundancy switch module, optional touchscreen and external AC-to-DC power supplies are sold separately unless included in the quoted configuration. For 10 MHz distribution requirements, refer to the GENUS GNS-395-ODU. Please confirm module compatibility, available capacity, power requirements and operating temperature limits when requesting a quotation.
