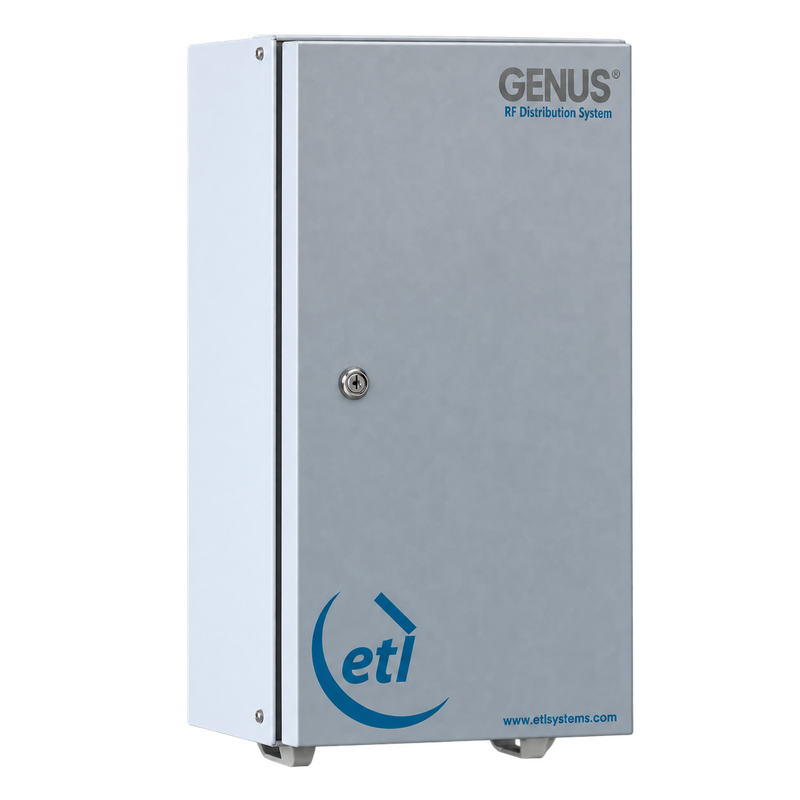

ETL Systems GENUS GNS-395-ODU Compact Outdoor RF Chassis with 10 MHz Reference

ETL Systems GENUS GNS-395-ODU Compact Outdoor RF Chassis with 10 MHz Reference

The ETL Systems GENUS GNS-395-ODU houses up to 8 compatible RF modules in a compact IP65 outdoor enclosure with an integrated high-stability 10 MHz reference source.

Configure the outdoor unit with amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre and test loop translators for satellite ground station signal management. Additional space accommodates a 1+1 redundancy switch module. The internal ovenised oscillator provides reference distribution, with external reference selection and automatic source switching, while secure Ethernet control simplifies remote operation.

Chassis Type: Compact modular outdoor enclosure
Module Capacity: Up to 8 RF modules; actual capacity depends on module types fitted
Compatible Modules: Amplifiers, BUC/LNB power supplies, frequency converters, matrices, RF over fibre, redundancy switches and test loop translators
Redundancy Options: Additional space for a 1+1 redundancy switch module; configuration must be confirmed
Internal Reference: Integrated high-stability ovenised 10 MHz oscillator and distribution module
Reference Accuracy & Stability: Frequency setting: ±0.001 kHz; temperature stability: <±0.00005 kHz; aging: ±0.0005 kHz/year
Reference Output & Selection: Sinewave, −10 to +10 dBm (±2 dBm); internal or customer-supplied external reference through the EXT input, with user-settable automatic switching
Power: Dual 12 VDC inputs; maximum consumption 100 W at steady state; outdoor AC-to-DC power supplies available separately
Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol and built-in web server; SNMPv3 and HTTPS; optional capacitive touchscreen
Serviceability: Field-serviceable RF modules and CPU; user-replaceable internal reference module; compatible RF modules can be inserted while the ODU is in service
Enclosure Protection: IP65, suitable for outdoor or indoor installation
Operating Temperature: −25°C to +60°C; maximum ambient air temperature +55°C, with solar spot heating up to +60°C; upper limit may be derated depending on module selection and loading
Dimensions & Weight: 450 mm high × 300 mm wide × 175 mm deep; <10 kg
Humidity: 20–100% RH, non-condensing

Key Features

• Compact IP65 enclosure supporting up to 8 compatible RF modules

• Included high-stability ovenised 10 MHz reference source

• Internal/external reference selection with automatic switching

• Additional space for a 1+1 redundancy switch module

• Dual 12 VDC power inputs

• Field-serviceable components for convenient maintenance

• Secure remote Ethernet control and optional local touchscreen

The internal 10 MHz reference source is included. RF modules, the redundancy switch module, optional touchscreen and external AC-to-DC power supplies are sold separately unless included in the quoted configuration. Please confirm module compatibility, reference interfaces, available capacity and operating temperature limits when requesting a quotation.
