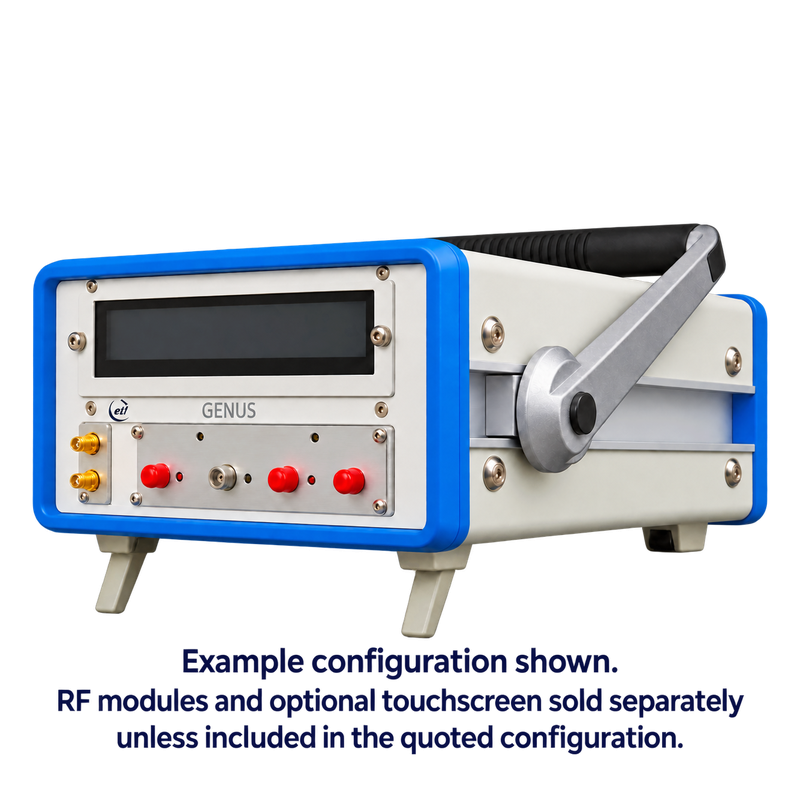

ETL Systems GENUS GNS-112 Benchtop RF Chassis with 10 MHz Reference

ETL Systems GENUS GNS-112 Benchtop RF Chassis with 10 MHz Reference

The ETL Systems GENUS GNS-112 is a modular benchtop RF chassis with up to 10 module slots, an integrated high-stability 10 MHz reference and secure Ethernet control.

Designed for satellite communications testing and RF instrumentation, the GNS-112 accommodates compatible GENUS series 1U modules in a compact, AC-powered benchtop platform. Mix frequency converters, test loop translators, noise generators, RF over fibre modules, splitters, combiners, matrices and redundancy switches to suit your application. Remote monitoring supports SNMPv3 and HTTPS, with an optional touchscreen for local operation.

Chassis Type: Modular benchtop RF instrumentation chassis
Module Capacity: Up to 10 slots for compatible GENUS series 1U modules
Compatible Modules: Frequency converters, test loop translators, noise generators, redundancy switches, RF over fibre, splitters, combiners, matrices and power supply modules
Internal Reference: Integrated high-stability ovenised 10 MHz oscillator and distribution card
Reference Accuracy & Stability: Frequency setting: ±0.001 kHz; temperature stability: <±0.00005 kHz; aging: ±0.0005 kHz/year
Reference Output: Sinewave; −10 to +10 dBm output power range (±2 dBm)
Reference Selection: Internal or customer-supplied external reference with suitable input hardware; user-settable automatic switching on RF power alarm
Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol, SNMPv3 and built-in HTTPS web server; optional capacitive touchscreen
AC Input: 85–264 VAC, 50/60 Hz
PSU & CPU Redundancy: Not provided
Weight: <18 kg
Temperature: Operating: −20°C to +50°C; storage: −40°C to +80°C
Installation Environment: Indoor use; 20–90% RH, non-condensing; altitude up to 3,000 m

Key Features

• Flexible benchtop platform with up to 10 module slots

• Integrated high-stability 10 MHz reference

• Supports a broad range of GENUS RF functions

• Secure remote control through SNMPv3 and HTTPS

• Optional local touchscreen control

• Wide-range AC power input

The internal 10 MHz reference card is included. RF modules, optional touchscreen and external-reference input hardware are sold separately unless included in the quoted configuration. Please confirm module compatibility and reference interfaces when requesting a quotation.
