ETL Systems GENUS GNS-116 Benchtop RF Chassis with 100 MHz Reference

ETL Systems GENUS GNS-116 Benchtop RF Chassis with 100 MHz Reference

The ETL Systems GENUS GNS-116 is a modular benchtop RF chassis supporting up to 10 module slots, an internal high-stability 100 MHz reference and secure Ethernet control.

Designed for satellite communications testing and RF instrumentation, the GNS-116 accommodates compatible GENUS series 1U modules in an AC-powered benchtop platform. Combine frequency converters, test loop translators, noise generators, RF over fibre, splitters, combiners, matrices and redundancy switches to suit your application. The ovenised reference supports internal or external source selection, while SNMPv3 and HTTPS provide secure remote monitoring.

Chassis Type: Modular benchtop RF instrumentation chassis
Module Capacity: Up to 10 slots for compatible GENUS series 1U modules
Compatible Modules: Frequency converters, test loop translators, noise generators, redundancy switches, RF over fibre, splitters, combiners, matrices and power supply modules
Internal Reference: High-stability ovenised 100 MHz oscillator and distribution card; supplied configuration to be confirmed
Reference Accuracy & Stability: Frequency setting: ±0.03 kHz; temperature stability: <±0.005 kHz; aging: ±0.03 kHz/year
Reference Output: 100 MHz sinewave; +2 dBm typ.
Reference Selection: Internal oscillator or customer-supplied external reference through the EXT input; user-settable automatic source switching
Control & Monitoring: RJ45 Ethernet, 10Base-T/100Base-TX, ETL TCP/IP protocol, SNMPv3 and built-in HTTPS web server; optional capacitive touchscreen
AC Input: 85–264 VAC, 50/60 Hz
PSU & CPU Redundancy: Not provided
Weight: <18 kg
Temperature: Operating: −20°C to +50°C; storage: −40°C to +80°C
Installation Environment: Indoor use; 20–90% RH, non-condensing; altitude up to 3,000 m

Key Features

• Flexible benchtop platform with up to 10 module slots

• High-stability ovenised 100 MHz reference

• Internal/external reference selection with automatic switching

• Supports a broad range of GENUS RF functions

• Secure remote control through SNMPv3 and HTTPS

• Optional local touchscreen control

• Wide-range AC power input

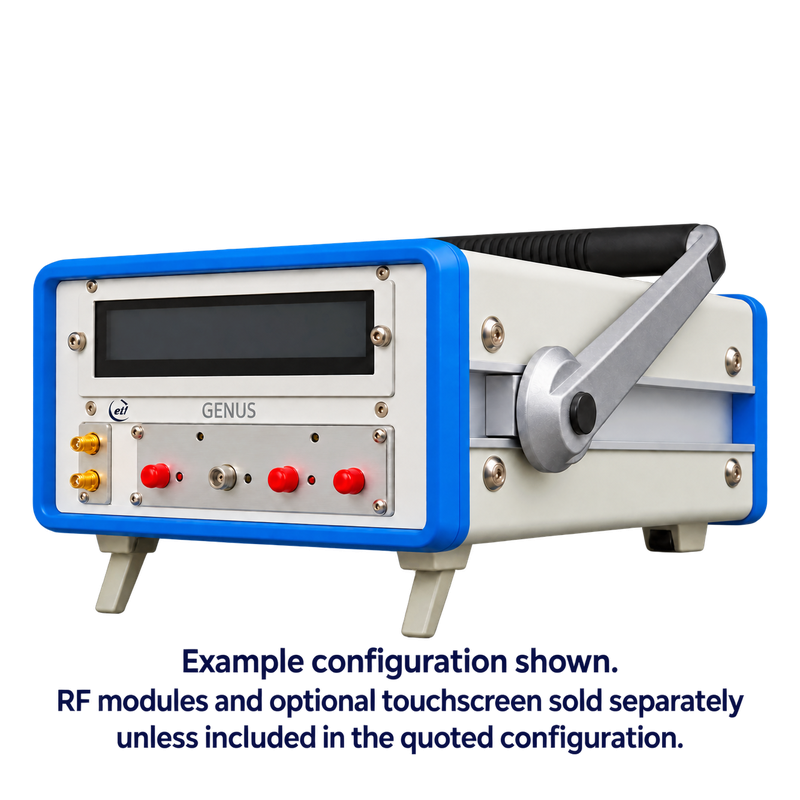

RF modules and the optional touchscreen are sold separately unless included in the quoted configuration. Please confirm inclusion of the internal 100 MHz reference/distribution card, module compatibility and external-reference interfaces when requesting a quotation.
