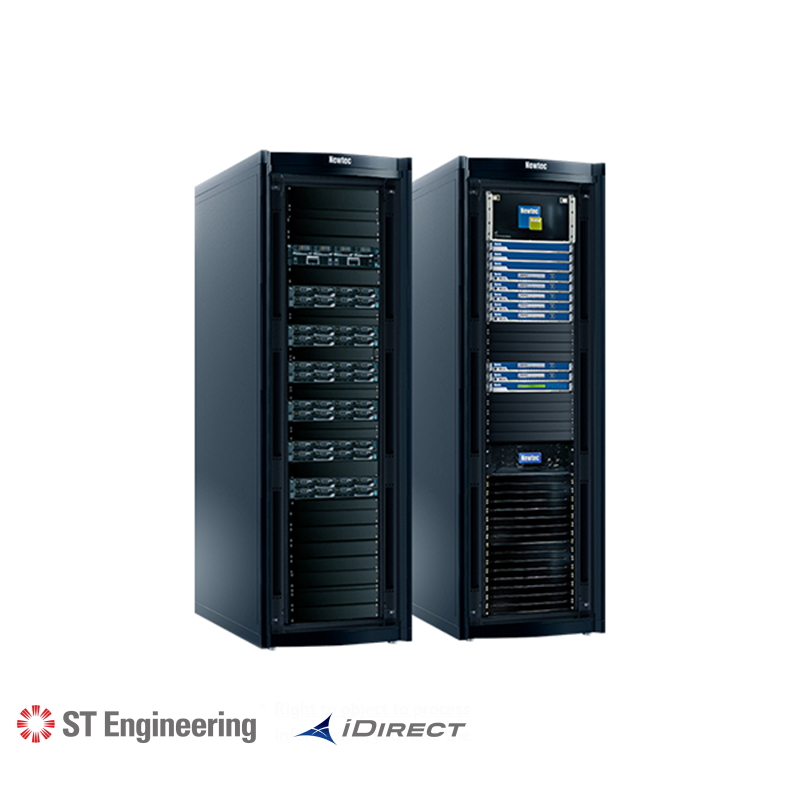

iDirect Dialog XIF Hub
  • iDirect Dialog XIF Hub

iDirect Dialog XIF Hub


Request for Quotation

Your Query is sent.

  •     *Required Fields



Security policy


Delivery policy


Return policy

The Dialog XIF Hub is the solution for gateway deployments, serving a multitude of beams, transponders or satellites and is designed for operators seeking high throughput through its 10 Gbps Ethernet switching infrastructure. Capacity can be extended easily and rapidly, simply by adding additional multicarrier modulators, demodulators and blade servers and activation in the Dialog NMS. The use of Private Cloud technology enables flexible VNF deployment based on scalable compute and storage resources.


. Highly flexible and scalable hub architecture

. Optimized baseband density & flexibility with baseband matrix

. Supports DVB-S2/DVB-S2X ACM with Modulation from QPSK to 256APSK

. Up to 500 Msps forward carriers

. Data throughput: 2 Gbps

. N:M redundancy for up to 32 multicarrier modulators and/or demodulators in one rack

. Modem Hardware: MCM7500 Multicarrier Modulator, MCD7000 Multicarrier Demodulator, MCD7500 Multicarrier Demodulator

. Carrier grade reliability with built-in redundancy

. Support for SCPC, MF-TDMA and Mx-DMA return links
