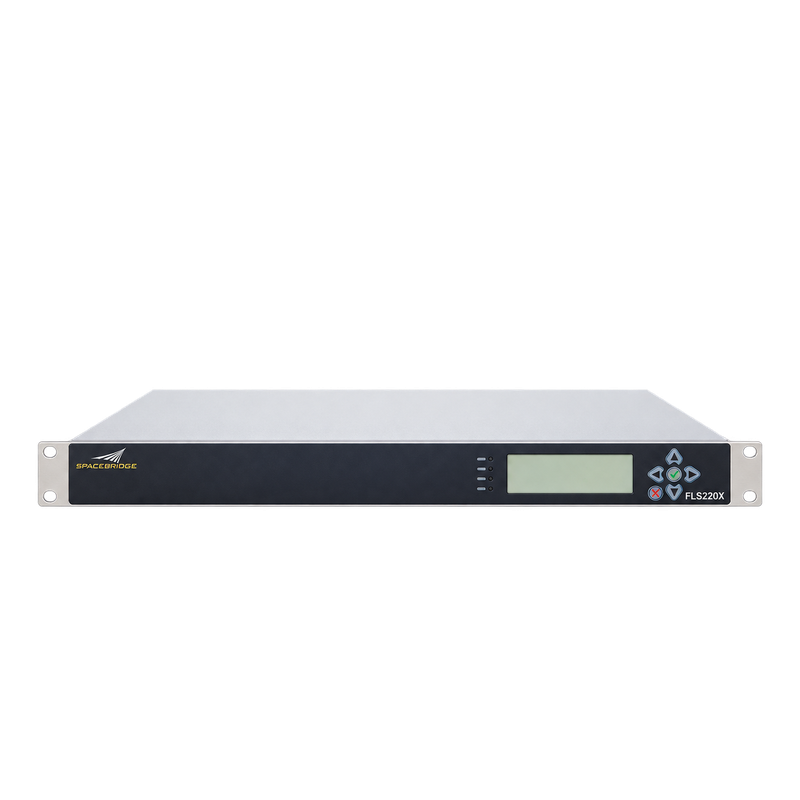

SpaceBridge FLS-220X DVB-S2X Forward Link Subsystem

SpaceBridge FLS-220X DVB-S2X Forward Link Subsystem

The SpaceBridge FLS-220X combines DVB-S2/S2X BBFrame processing and broadcast modulation for ESTELLA and ASAT-II VSAT platforms. Delivering up to 2.4 Gbps throughput, it supports up to 500 MHz instantaneous bandwidth for ESTELLA and 125 MHz for ASAT-II. Advanced encapsulation, adaptive modulation and multi-carrier operation support broadband, enterprise, mobility, cellular backhaul and DVB-NIP broadcasting across GEO, MEO and LEO satellite networks.

Key Specifications

• Data Throughput: Up to 2.4 Gbps

• Instantaneous Bandwidth: Up to 500 MHz for ESTELLA; 125 MHz for ASAT-II

• Carrier Capacity: Up to eight independently configurable carriers

• RF Output Frequency Range: 950–2450 MHz

• RF Output Level: −35 to 0 dBm

• RF Output Connector: N-type female, 50 Ω

• Modulation: QPSK through 256APSK

• Operating Modes: ACM, VCM and CCM

• Traffic Interfaces: Two 1/10GbE SFP ports, two 1/10GbE RJ45 ports and eight ASI inputs

• Management Interfaces: Four Ethernet ports

• Power Input: 90–240 VAC, 47–63 Hz

• Power Consumption: 100W

• Power Supplies: Dual redundant, built-in 300W supplies

• Form Factor: 1RU rackmount

• Operating Temperature: 0°C to +50°C

Key Features

• GSE/GSE-Lite encapsulation and optimized BBFrame generation

• Up to eight time slices and eight input streams

• Integrated DVB-RCS2 signaling, user traffic, DVB-NIP services and WaveSwitch™ control multiplexing

• Internal 10 MHz OCXO with external 10 MHz and 1PPS inputs

• NCR/PCR generation and processing for network synchronization

• Management through web GUI, SNMP v2c/v3, CLI and front-panel controls

Download the datasheet under Attachments for detailed specifications.
