9.0m Antenna
C-Band 4-Port Linear/Circular
Security policy
Delivery policy
Return policy

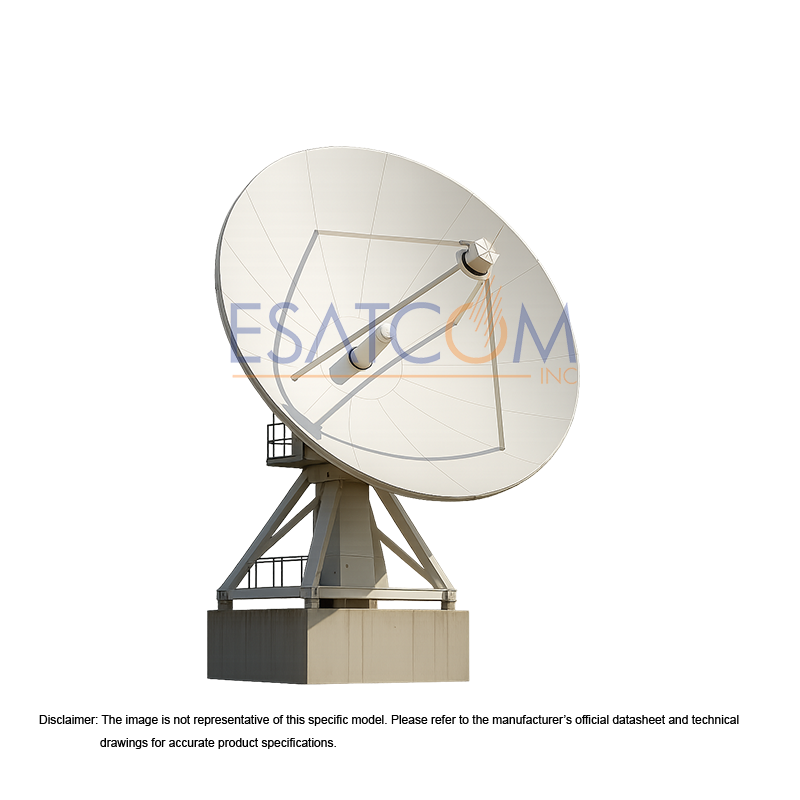

The antenna system consists of dual shaped Cassegrain reflectors with backup structure, a frequency reused feed assembly with corrugated horn, an elevation-over-azimuth limit motion kingpost pedestal., the hub connecting the main reflector with mount. The pedestal provides the guaranteed pointing accuracy required in C band operations.
Antenna system is characteristic of high gain, low sidelobes, low cross polarization, capable for frequency reuse both in transmit and receive bands, high driving/control accuracy with angle position display in high resolution.
The radiation patterns meet the associated requirements of INTELSAT IESS, and CCIR for satellites at 2 degrees spacing location in geo- stationary orbit.
- Frequency Range
- Tx: 5.850 - 6.425 GHz
- Frequency Range
- Rx: 3.625 - 4.200 GHz
- Mid-band Gain
- Rx: 50 dB; Tx: 53.20 dB
- Antenna Noise Temperature
- 48K @ 5° Elevation
- Antenna Noise Temperature
- 36K @ 10° Elevation
- Antenna Noise Temperature
- 29K @ 20° Elevation
- Antenna Noise Temperature
- 24K @ 40° Elevation
- Pattern Beamwidth -3dB
- Rx: 0.56°; Tx: 0.36°
- V S W R
- Rx: 1.3:1 (LP); 1.25:1 (CP)
- V S W R
- Tx: 1.3:1 (LP); 1.25:1 (CP)
- Sidelobe Pattern
- Beyond first sidelobe meet IESS(Intelsat) or CCIR 580-4 Recommendation
- Sidelobe Pattern
- First sidelobe level less than -14dB
- Cross Pol. Discrimination
- 35dB (On axis) ; 30dB (within 1 dB Beamwidth)
- Feed Insertion Loss
- Rx: 0.30 dB; Tx: 0.30 dB
- Power Handling Capability
- 5 KW per port
- Port to Port Isolation
- Tx/Rx: 85 dB
- Port to Port Isolation
- Tx/Tx: 30 dB (LP)
- Port to Port Isolation
- Rx/Rx: 20 dB (CP)
- Feed Interfaces
- Rx: CPR-229F; Tx: CPR-137F
- Pedestal Type
- Limited Motion, El.over Az., Kingpost
- Azimuth Travel
- 180° in two 100° in overlapping sectors continuous
- Elevation Travel
- 0 to 90°
- Polarization Travel
- ±90°
- Reflector
- Stretch-formed aluminum panel
- Backup Structure
- Steel
- Pedestal Structure
- Steel
- Finish
- Pedestal and Steel Structure: Hot-dipped galvanization
- Finish
- Reflector Surface: Aluminum panels with heat-diffusing white paint
- Antenna drive mode
- AC motor drive per Az, El and Pol
- Operation Wind
- 50km/h gusts to 97km/h
- Survival Wind
- 200km/h
- Ambient Temperature
- -40°C to +60°C
- Rain
- up to 100mm/h
- Relative Humidity
- up to 100%
- Radial Ice (Survival)
- 25mm on all surface or 13mm on all surface with 130km/h wind gusts
- Shock & Vibration
- As encountered during shipment by commercial air, sea or truck
- Corrosive atmosphere
- As encountered in coastal regions and/or heavily industrialized areas
- Seismic (Survival)
- 0.3G’s horizontal
- Seismic (Survival)
- 0.1G’s vertical
