SMW Adjustable Line Amplifier | Low-Power Gain Control for L-Band Systems

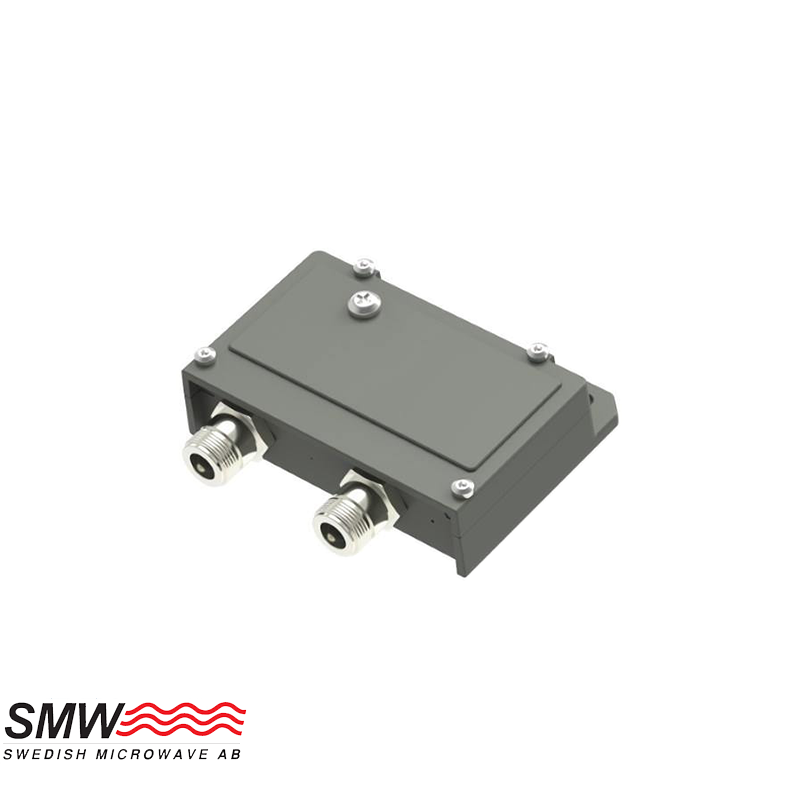

The SMW Gain Adjustable Low Power Line Amplifier is a compact, high-linearity solution for optimizing signal levels in satellite communication systems. Designed for installation near the LNB or along the IFL, it supports both flat gain (24 dB) and slope gain (18–25 dB) configurations. With adjustable gain control from 0 to –10 dB, this amplifier ensures precise tuning while supporting key functions like 22 kHz tone and 10 MHz reference bypass.

Key Features:

  • Two Gain Profiles:

• Flat Gain: 24 dB
• Slope Gain: 18–25 dB

  • Adjustable Gain: 0 to –10 dB
  • High IP3 and P1dB for excellent linearity and signal integrity
  • 22 kHz tone and 10 MHz reference bypass support
  • DC pass-through standard
  • Available connector types: F-type, N-type, or SMA
  • Optional DC power input (connector or pigtail cable)
  • Fully backward-compatible with ILA 18-24 models

Applications:

  • Line amplification in L-band SATCOM IFL chains
  • Signal boosting for long cable runs or passive system losses
  • Drop-in upgrade for legacy ILA 18-24 installations
