CPI LKA20S110-XXXXX

LKA20S110-XXXXX Ka-Band LNA | 18.2–20.2 GHz, 110 K, 60 dB Gain

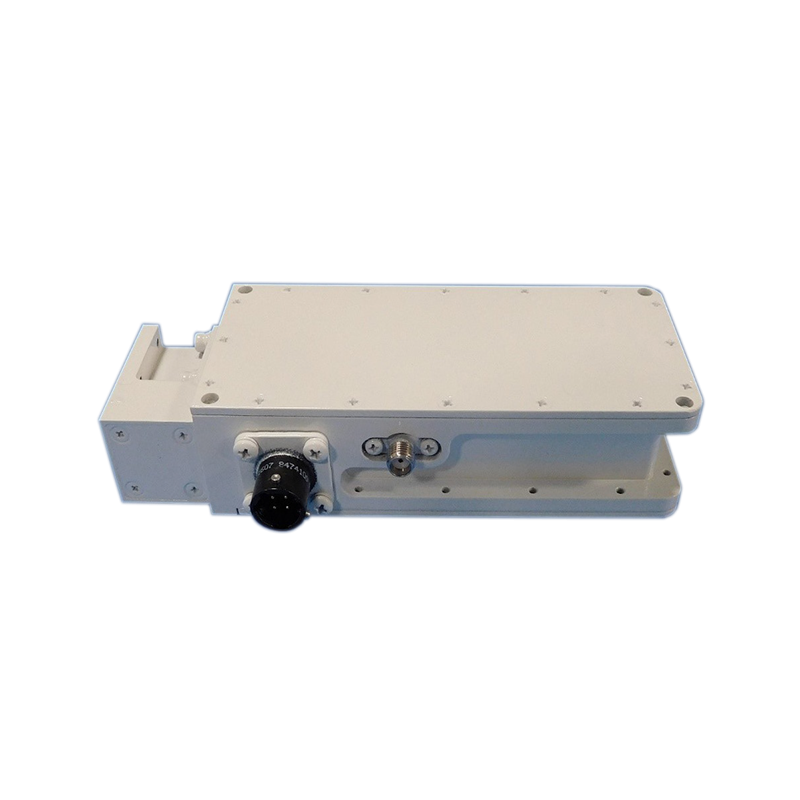

The CPI model LKA20S110-XXXXX is a high-performance Ka-band Low Noise Amplifier operating over 18.2–20.2 GHz with an ultra-low noise temperature of 110 K and 60 dB gain. Engineered for satellite communication systems and earth station front ends, this LNA features HEMT technology, temperature-compensated gain, built-in isolators, and rugged RF packaging. It includes WR42 input and SMA output, with optional +20 dBm output power and AC power supply support.

Key Features:

Frequency Range: 18.2–20.2 GHz (Band A)

Noise Temperature: 110 K typ. @ +23°C

Gain: 60 dB typ. (Option X)

VSWR: 1.25:1 input / 1.40:1 output typ.

Output P1dB: +12 dBm min (standard), +20 dBm (optional)

Power: +11 to +28 VDC (standard), optional AC input

Connectors: WR42 waveguide input, SMA (F) output

Operating Temperature: –40°C to +70°C

Integrated isolators, reverse polarity protection, Form ‘A’ alarm
