CPI LCC4S30-XX

LCC4S30-XX C-Band LNA | 3.6–4.2 GHz, 30 K Noise Temp, 60 dB Gain

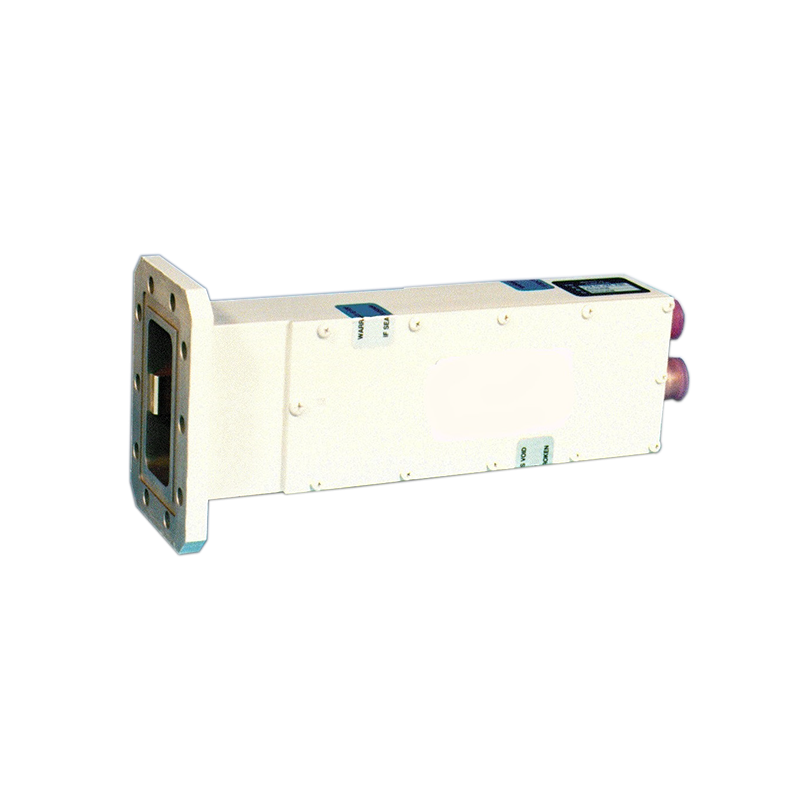

The LCC4S30-XX is a premium C-band Low Noise Amplifier operating from 3.6 to 4.2 GHz with a guaranteed 30 K noise temperature. Designed for satellite earth station receiver chains, this amplifier features 60 dB gain, HEMT/GaAs FET technology, and excellent gain flatness and VSWR. Housed in a weatherproof enclosure with surge and reverse polarity protection, it ensures high-reliability operation in fixed or transportable SATCOM systems.

Key Features:

Frequency Range: 3.6–4.2 GHz (C-band)
Guaranteed Noise Temperature: 30 K (cold load verified)
Gain: 60 dB typ., flatness ±0.5 dB
VSWR: 1.25:1 input / 1.50:1 output typ.
Output P1dB: +10 dBm min.
Input: CPR-229G; Output: N-Type female
Weatherproof, CE certified, RoHS compliant
Reverse polarity and surge protection
Internal regulator and isolator
Applications:

C-band satellite receiver front ends

Broadcast and VSAT receive systems

Fixed and mobile earth station terminals
