CPI LCC4S35-XX

LCC4S35-XX C-Band LNA | 3.6–4.2 GHz, 35 K Noise Temp, 60 dB Gain

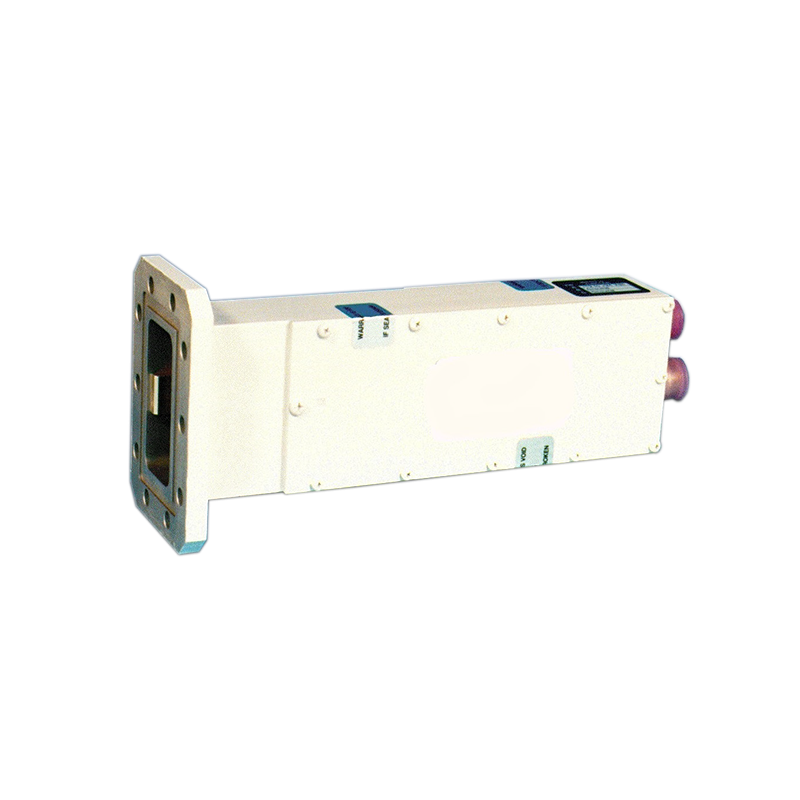

The LCC4S35-XX is a high-performance C-band Low Noise Amplifier designed for satellite ground stations requiring 35 K guaranteed noise temperature across the 3.6–4.2 GHz band. Featuring advanced HEMT/GaAs FET design, this amplifier offers 60 dB of gain with excellent flatness, low VSWR, and a rugged weatherproof enclosure. Ideal for fixed and transportable SATCOM applications where low noise and high reliability are critical.

Key Features:

Frequency Range: 3.6–4.2 GHz

Guaranteed Noise Temperature: 35 K (cold load verified)
Gain: 60 dB typ. ±0.5 dB flatness
Input/Output VSWR: 1.25:1 / 1.50:1 typ.
Output Power (P1dB): +10 dBm min.
Input: CPR-229G waveguide; Output: N-Type female
Reverse polarity & surge protection
Internal isolator and voltage regulator
CE certified, RoHS compliant, weatherproof design
Applications:

C-band satellite receiver front ends

Broadcast and VSAT receive systems

Fixed and mobile earth station terminals
