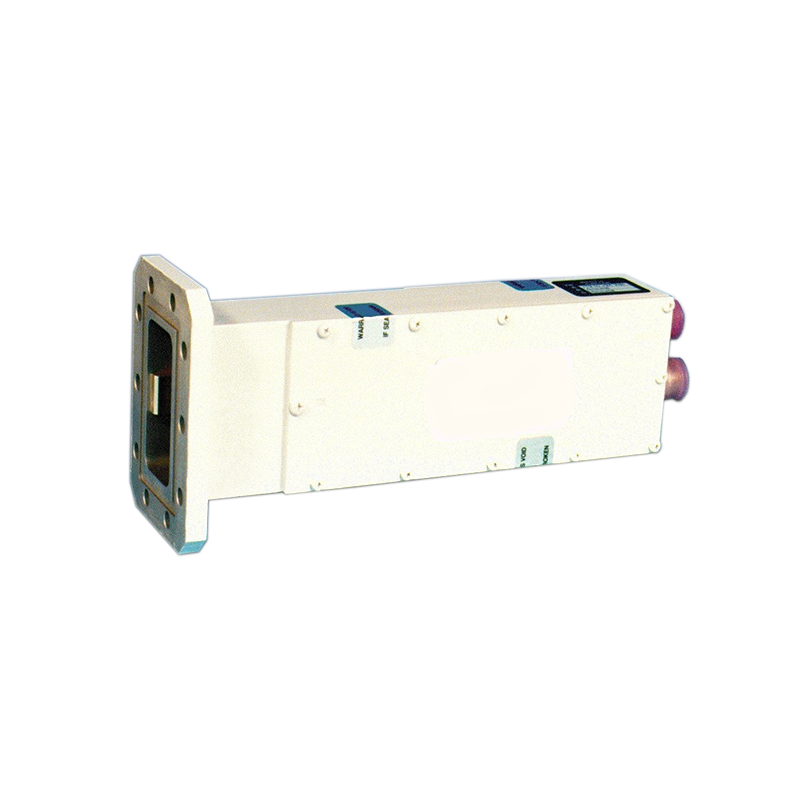

CPI LCD4S35-XX

C-Band 3.4–4.2 GHz LNA

Quantity

Request for Quotation

Your Query is sent.

  •     *Required Fields

Loading



Security policy



Delivery policy



Return policy

LCD4S35-XX Extended C-Band LNA | 3.40–4.20 GHz, 35 K, 60 dB Min Gain

The LCD4S35-XX is a high-performance extended C-band Low Noise Amplifier (LNA) optimized for satellite earth station receiver systems. Operating across the 3.40–4.20 GHz range, it guarantees a minimum gain of 60 dB and features a noise temperature of 35 K max. Built with advanced HEMT/GaAs FET technology, this amplifier is enclosed in a rugged, weatherproof housing and includes internal surge protection, polarity protection, and a Form ‘C’ alarm interface for reliability in harsh outdoor environments.

Key Features:

Frequency Range: 3.40–4.20 GHz (Extended C-Band)
Noise Temperature: 35 K max over full band
Gain: 60 dB min
Technology: HEMT/GaAs FET design for ultra-low noise
Weatherproof enclosure with input isolator
Internal regulator, reverse polarity, and surge protection
Integrated Form ‘C’ alarm output
CE certified and RoHS compliant
Available Options:

+20 dBm high output power
Universal input AC power supply
Applications:
Extended C-band satellite gateways, VSAT terminals, and teleport installations

CPI LCD4S30-XX
Frequency Range
3.4–4.2 GHz
Noise Temperature
35 K
Output Power
+10 dBm
Power Configuration
+12 to +24 Vdc
