CPI LKC20S120-XXXXX Ka-Band LNA | 17.7–21.2 GHz, 120 K Noise Temp

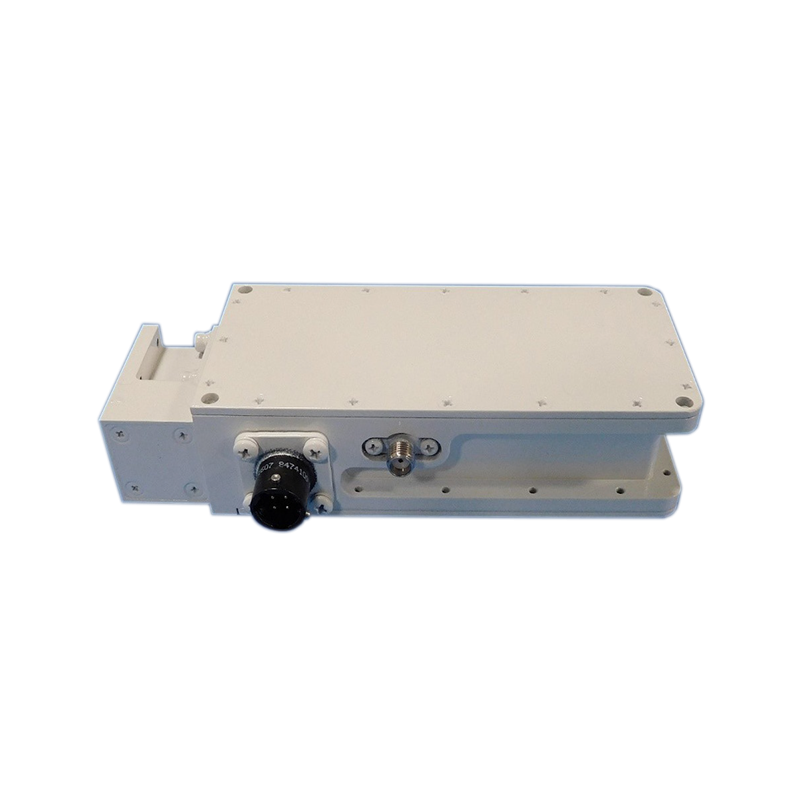

The CPI LKC20S120-XXXXX is a high-performance Ka-band low noise amplifier covering the full 17.7–21.2 GHz downlink spectrum (Band C). Designed for satellite receive systems requiring broad frequency support and low noise performance, this LNA offers a typical noise temperature of 120 K. Housed in a rugged, weather-sealed package, it is ideal for gateway and earth station applications.
Key Features:
Frequency Range: 17.7–21.2 GHz
Noise Temperature: 120 K
High linearity with excellent gain stability
Input/output waveguide: WR42
Compact, outdoor-rated design
Optional +20 dBm output power version
CE marked and RoHS compliant
Cold-tested performance and guaranteed specs
Applications:
Ka-band satellite downlink reception
Earth stations and gateway terminals
Broadband and high-throughput satellite systems
LKC20S120-XXXXX
- Frequency Range
- 17.7–21.2 GHz
- Noise Temperature
- 120 K
- Gain
- 60 dB
- Output Power
- +12 dBm
- Finish Color
- Commercial White
- Power Configuration
- +11 to +28 Vdc
