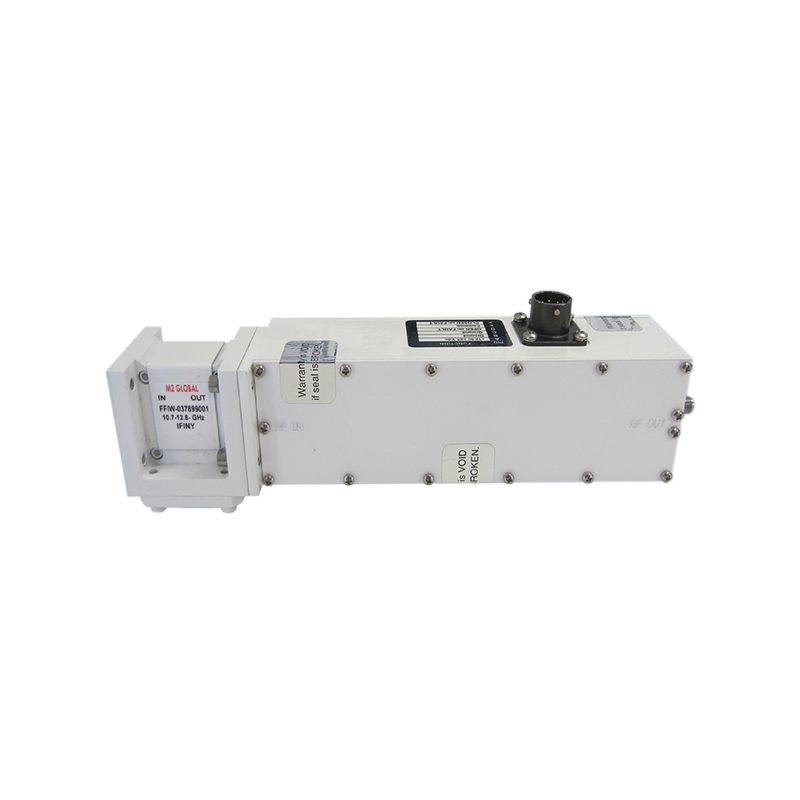

LKR12S65-XXXX Ku-Band LNA | 10.7–12.75 GHz, 65 K Noise Temp, 60 dB Gain

The CPI LKR12S65-XXXX is a wideband Ku-band low noise amplifier designed for 10.7–12.75 GHz satellite receive systems. With a guaranteed noise temperature of 65 K and minimum gain of 60 dB, this high-performance LNA supports broad satellite downlink coverage with excellent linearity and reliability. It features SMA female output, +12 to +24 VDC operation, and built-in RF protection, making it ideal for broadcast, VSAT, and fixed earth stations.

Key Features:

Frequency Range: 10.7–12.75 GHz
Noise Temperature: 65 K typ. (guaranteed)
Gain: 60 dB min.
Output Power: +12 dBm min.
Power Supply: +12 to +24 VDC
RF Output Connector: SMA female
Built-in input isolator, reverse polarity and surge protection
CE certified and RoHS compliant
Applications:

Wideband Ku-band satellite ground stations
VSAT and broadcast receive systems
Fixed and transportable LNA applications

LKR12S65-XXXX
Frequency Range
10.7–12.75 GHz
Noise Temperature
65 K
Gain
60 dB
Output Power
+12 dBm
Power Configuration
+12 to +24 Vdc
RF Out Connector
SMA Female
