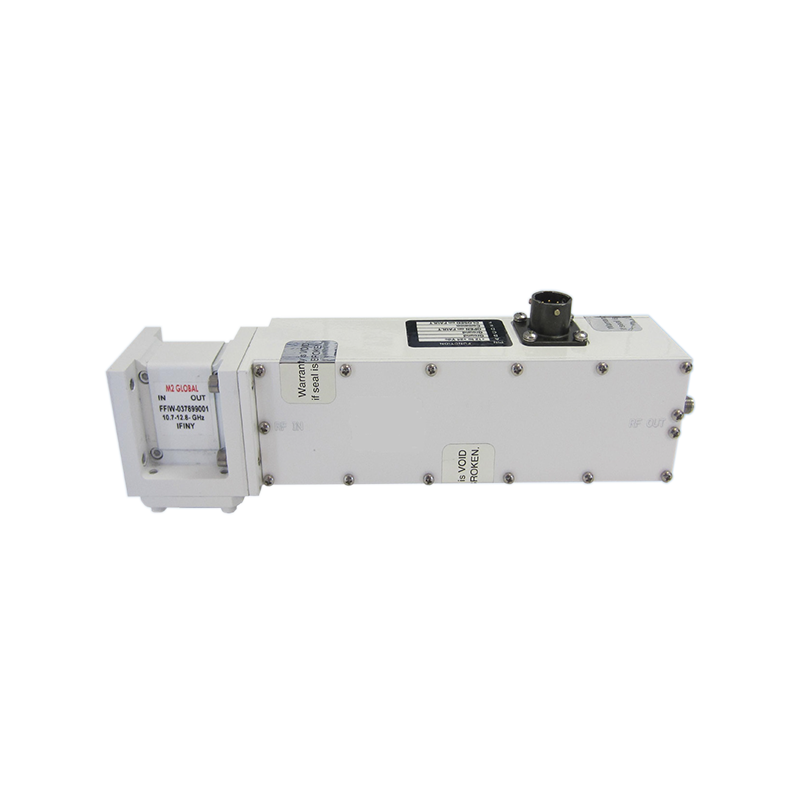

LKR12S70-XXXX Ku-Band LNA  | 10.7–12.75 GHz, 70 K Noise Temp, 60 dB Gain

The CPI LKR12S70-XXXX is a wideband Ku-band low noise amplifier covering the 10.7–12.75 GHz receive band. With a guaranteed noise temperature of 70 K and 60 dB minimum gain, it delivers strong performance in fixed and transportable satellite applications. Designed with robust protection features and a compact footprint, it supports +12 to +24 VDC input and offers SMA female output for integration flexibility.

Key Features:

Frequency Range: 10.7–12.75 GHz
Noise Temperature: 70 K guaranteed
Gain: 60 dB min.
Output Power: +12 dBm min.
Input Voltage: +12 to +24 VDC
RF Connector: SMA female
Input isolator, reverse polarity & surge protection
CE certified and RoHS compliant
Applications:

Wideband Ku-band SATCOM receive systems

Broadcast and VSAT terminals

Government and commercial ground stations

LKR12S70-XXXX
Frequency Range
10.7–12.75 GHz
Noise Temperature
70 K
Gain
60 dB
Output Power
+12 dBm
Power Configuration
+12 to +24 Vdc
RF Out Connector
SMA Female
