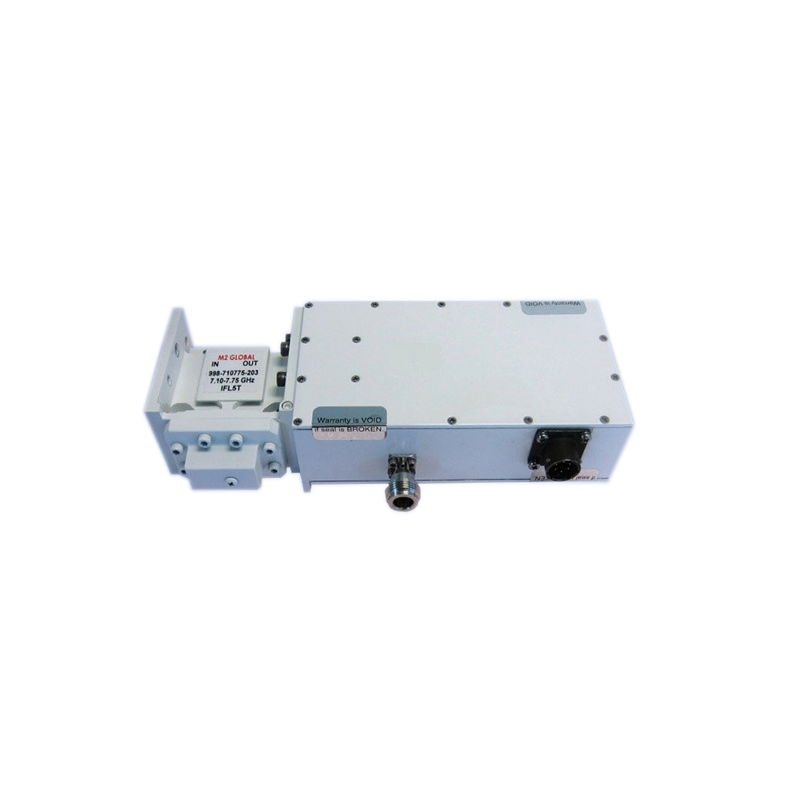

CPI LXA7S50-XXXX X-Band LNA | 7.25–7.75 GHz, 50 K Noise Temperature

The CPI LXA7S50-XXXX is a high-performance X-band Low Noise Amplifier designed for satellite earth stations and critical RF receive systems. Operating from 7.25 to 7.75 GHz, this LNA offers a low noise temperature of 50 K and delivers 60 dB of gain with excellent linearity. Built for reliable outdoor deployment, it features an integrated low-loss input isolator, weatherproof housing, and robust surge protection.

Key Features:

Frequency Range: 7.25–7.75 GHz
Noise Temperature: 50 K typ.
Gain: 60 dB typ.
Output Power (P1dB): +12 dBm
Input Power: +12 to +24 VDC
Output Connector: N-type female
Enclosure: Weatherproof, rugged construction
Protections: Reverse polarity, surge, and transient protection
Applications:

Satellite earth station receive systems
X-band SATCOM terminals
Government and commercial RF installations

LXA7S50-XXXX
Frequency Range
7.25 - 7.75 GHz
Noise Temperature
50 K
Gain
60 dB
Output Power
+15 dBm
Power Configuration
+12 to +24 Vdc
