CPI LSH2S35-X S-Band Low Noise Amplifier

CPI LSH2S35-X S-Band LNA | 2.1–2.5 GHz, 35K Noise Temperature

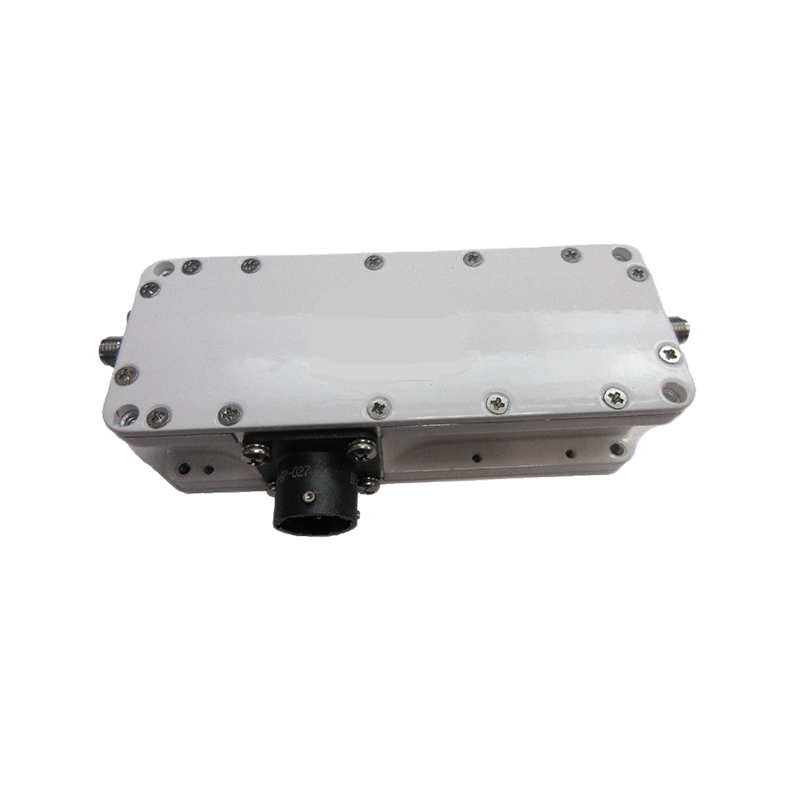

The CPI LSH2S35-X is a high-performance S-band low noise amplifier designed for satellite earth station receiver front ends and telecommunications applications. Covering 2100–2500 MHz, it provides a low 35 K noise temperature and 63 dB typical gain for fixed and transportable SATCOM systems.

Frequency Range: 2100–2500 MHz
Noise Temperature: 35 K
Gain: 60 dB min., 63 dB typ., 66 dB max.
Gain Flatness: ±0.5 dB over the full band; ±0.25 dB per 10 MHz
Output Power at 1 dB Compression: +10 dBm min., +13 dBm typ.
Output Third-Order Intercept: +20 dBm min., +23 dBm typ.
Input VSWR: 1.50:1 typ., 1.75:1 max.
Output VSWR: 1.50:1 typ., 1.75:1 max.
RF Input Connector: SMA female
RF Output Connector: SMA female
Power Connector: MS 6-pin; mating connector supplied
Power Requirements: 11–15 VDC; 12 VDC typ.
Operating Temperature: -40°C to +60°C
Finish Color: Commercial white

Key Features:

• 2100–2500 MHz S-band frequency coverage

• Low 35 K noise temperature

• 63 dB typical gain

• +10 dBm minimum output power

• State-of-the-art MMIC design

• Internal voltage regulator

• Reverse-polarity protection

• Built-in fault alarm

• High-reliability construction

• Compact commercial-white enclosure

• Designed for fixed and transportable applications

• Suitable for 1:1 and 1:2 redundant LNA systems
