CPI LLB15S45-X L-Band LNA | 1510–1577 MHz, 45K Noise, +10 dBm Output

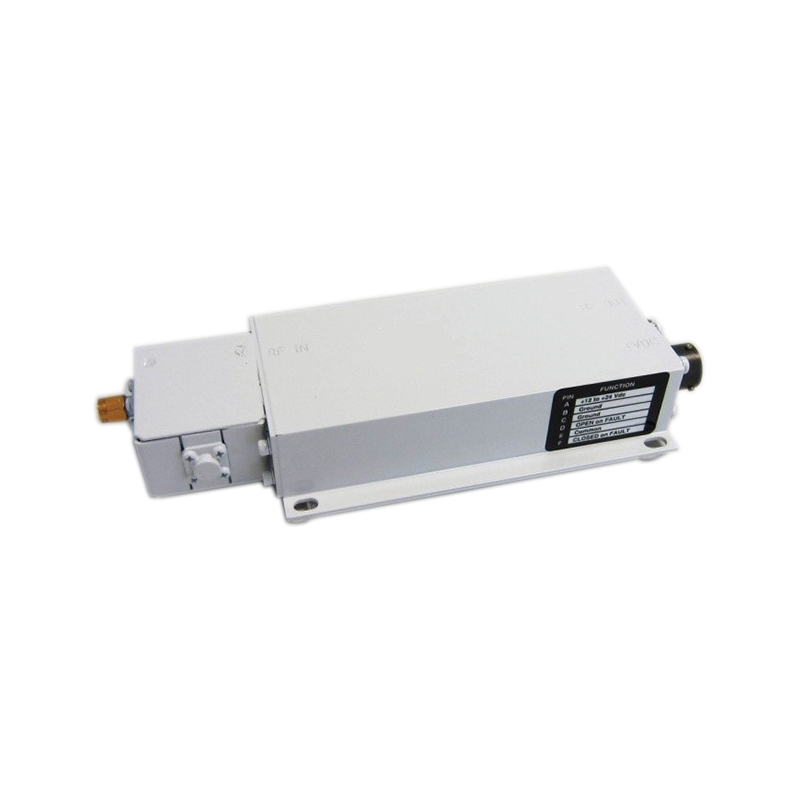

The CPI LLB15S45-X is a high-performance L-Band Low Noise Amplifier designed for satellite ground stations operating in the 1510–1577 MHz band. It delivers a low 45 K noise temperature, 50 dB min gain, and +10 dBm output power, making it ideal for precision signal reception in telecom and SATCOM applications. This model includes reverse polarity and fault protection, SMA connectors, and operates on +12 to +15 VDC.
Key Features:
Frequency Range: 1510–1577 MHz
Noise Temperature: 45 K max @ +23°C
Gain: 50 dB min (standard)
Output Power: +10 dBm min at 1 dB compression
Input/Output: SMA (M/F)
Power: +12 VDC typical, 150 mA typ
Protection: Reverse polarity, surge, and alarm monitoring
Operating Temp: –40°C to +60°C
ISO 9001:2015 certified
Applications:
SATCOM receive terminals
L-band ground stations
Redundant system configurations (1:1, 1:2)
LLB15S45-X
- Frequency Range
- 1.51–1.577 GHz
- Noise Temperature
- 45 K
- Gain
- 50 dB
- Output Power
- +10 dBm
