LLB15S35-X C-Band LNA | 1510–1577 MHz, 35K Noise Temp, 50 dB Gain

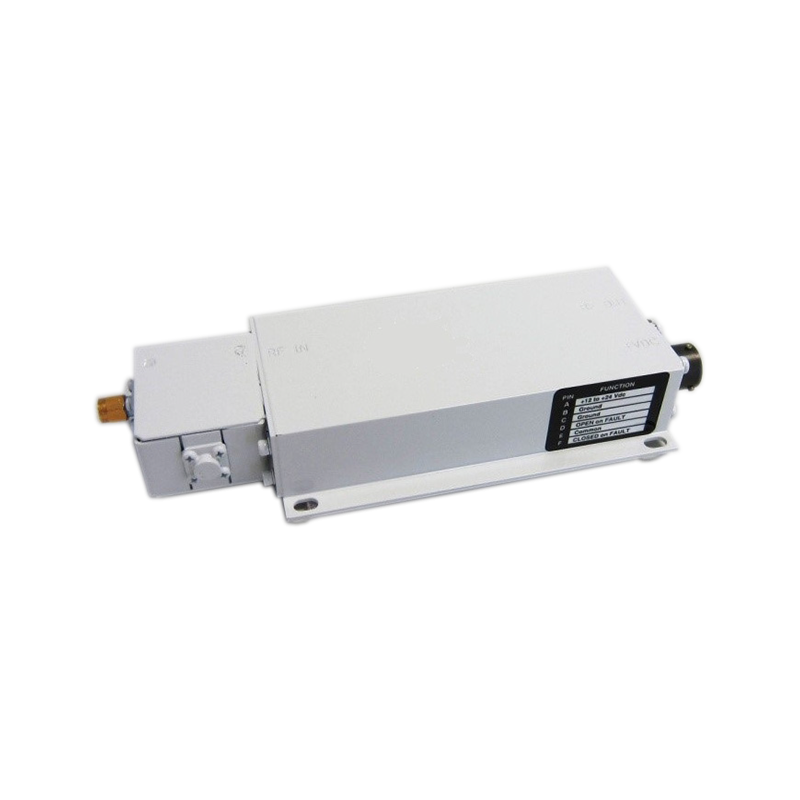

The CPI Satcom LLB15S35-X is a high-performance L-band Low Noise Amplifier tailored for satellite earth stations and GPS reception in the 1510–1577 MHz range. Offering a guaranteed 35 K noise temperature and 50 dB gain, this LNA ensures low-noise, high-linearity signal amplification. It features +10 dBm P1dB output, surge and polarity protection, and robust weatherproof packaging for reliable outdoor performance.
Key Features:
Frequency Range: 1510–1577 MHz
Noise Temperature: 35 K (guaranteed)
Gain: 50 dB
Output Power: +10 dBm (P1dB)
Surge, reverse polarity, and transient protection
Weatherproof housing with CPR input flange
Internal regulator and Form ‘C’ alarm relay
CE certified and RoHS compliant
Applications:
GPS L1 downlink reception
L-band SATCOM systems
Earth station front-end signal chains
LLB15S35-X
- Frequency Range
- 1.51–1.577 GHz
- Noise Temperature
- 35 K
- Gain
- 50 dB
- Output Power
- +10 dBm
