CPI LRK1XXX-XXXXXXX 1:1 Ku-Band Redundant LNA System

CPI CPI LRK1XXX-XXXXXXX  1:1 Ku-Band Redundant LNA System

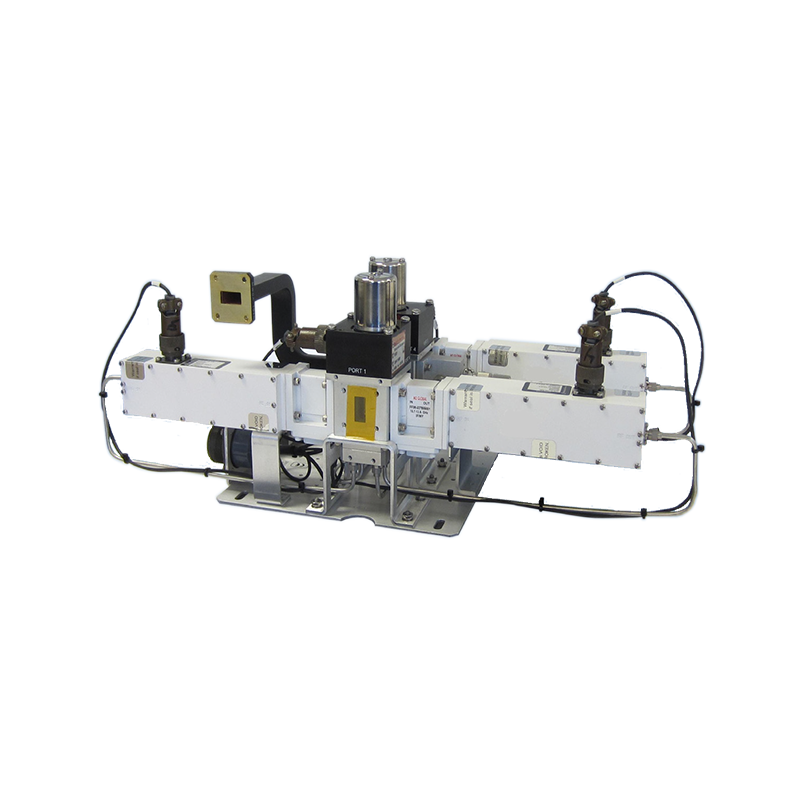

The CPI LRK-1000 1:1 Ku-band redundant LNA system minimizes receiver downtime by automatically switching the RF path from the primary LNA to a dedicated standby LNA when a failure is detected. The system includes two CPI LK-12000 Series LNAs, an outdoor antenna-hub plate assembly, an indoor redundancy controller and an interconnecting control cable.

System Configuration: 1:1 redundancy
LNA Configuration: One primary LNA and one standby LNA
Band Frequency Range: 10.95–12.75 GHz or 10.70–12.75 GHz
LNA Noise Temperature Options: 65 K, 70 K, 80 K or 90 K
Standard System Noise Contribution: 5 K, excluding LNA
Gain: 60 dB min., 63 dB typ.
Optional Gain: 50 dB min., 53 dB typ.
Gain Match Between LNAs: 1 dB max.
Gain Flatness: ±0.75 dB over the full band; ±0.30 dB per 40 MHz
Output P1dB: +10 dBm min., +13 dBm typ.
High-Power Option: +18 dBm min., +20 dBm typ.
Input VSWR: 1.20:1 typ., 1.25:1 max.
Output VSWR: 1.20:1 typ., 1.25:1 max.
RF Input Connector: WR-75 waveguide flange
RF Output Connector: Type N female; SMA female available
Plate Assembly Power: 11–24 VDC for LNAs; 6 W typ.
Automatic Switchover Time: 100 ms max.
Controller Interface: 10/100Base-T Ethernet
Remote M&C: SNMP v1, v2c and v3; RS-232, RS-422, RS-485 and parallel I/O
Controller Power: 100–135 or 180–240 VAC, 47–63 Hz
Plate Operating Temperature: -40°C to +60°C
Compliance: CE certified, RoHS compliant and EAR99

Key Features:

• Dedicated standby LNA protects one primary receiving path

• Automatic switchover when a primary LNA failure is detected

• CPI LK-12000 Series Ku-band low noise amplifiers

• 10.70–12.75 GHz or 10.95–12.75 GHz frequency coverage

• Outdoor antenna-hub plate assembly

• High-quality waveguide and coaxial RF switches

• Manual or automatic operating modes

• Manual RF switch override

• LNA current and external alarm monitoring

• User-selectable LNA current tolerance window

• Dual redundant controller power supplies

• Front-panel switch-position and system-status display

• Standard output coaxial isolator

• Optional 13.75–14.50 GHz transmit-reject filter

• Optional -40 dB input crossguide coupler

• Optional -20 dB output coaxial coupler

• Optional terminated offline input and output

• Ethernet, serial and parallel remote control

• Audible fault alarm

• Standard control cables from 100 to 250 ft.

• Optional remote control panel for operation up to 4,000 ft. away
