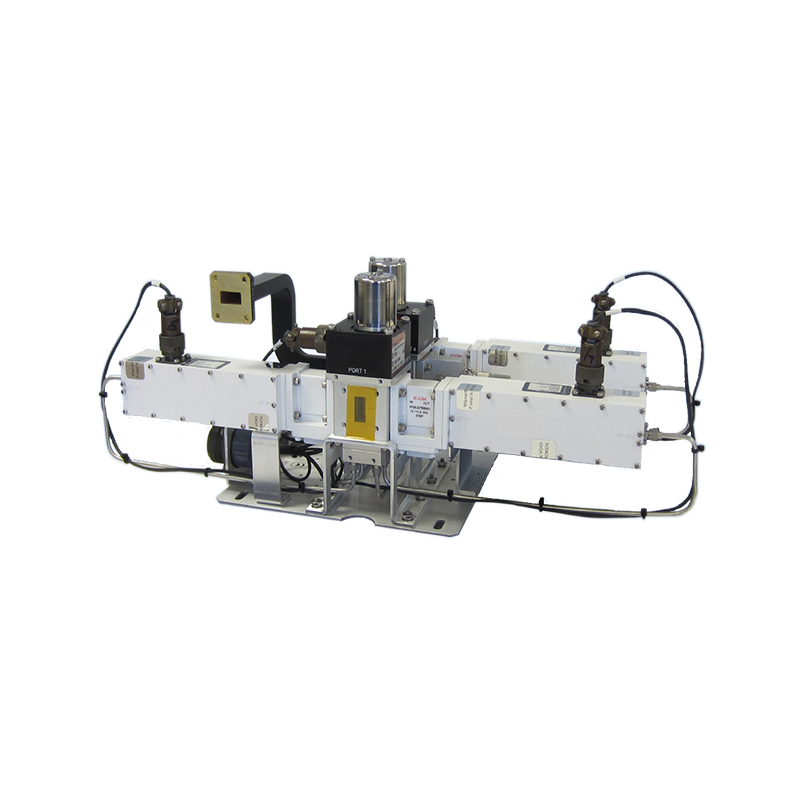

CPI LRK1XXX-XXXXXXX 1:1 Ku-Band Redundant LNA System

The CPI LRK-1000 Series 1:1 Ku-Band Redundant Low Noise Amplifier (LNA) System is designed to ensure uninterrupted satellite signal reception by providing a backup LNA that automatically activates upon failure of the primary unit. This system includes an outdoor waveguide/coax plate assembly, an indoor redundant controller, and optional couplers and filters for customization. It supports both 10.95–12.75 GHz and 10.70–12.75 GHz frequency bands with a variety of noise temperature and gain options.

Key Features:

Frequency Range: 10.95–12.75 GHz or 10.70–12.75 GHz

Noise Temperature: 65K / 70K / 80K / 90K (options)

Gain: Typ. 63 dB, Option for 50 dB

Input: WR75F waveguide, Output: Type-N

Redundant Controller with SNMP, Ethernet, RS-232/422/485

TX reject filter and coupler options available

Compact 1 RU controller with front panel and remote control

CE certified, RoHS compliant

CPI LRK1XXX-XXXXXXX
Band
Ku Band
Component Type
LNA
Redundancy
1:1
