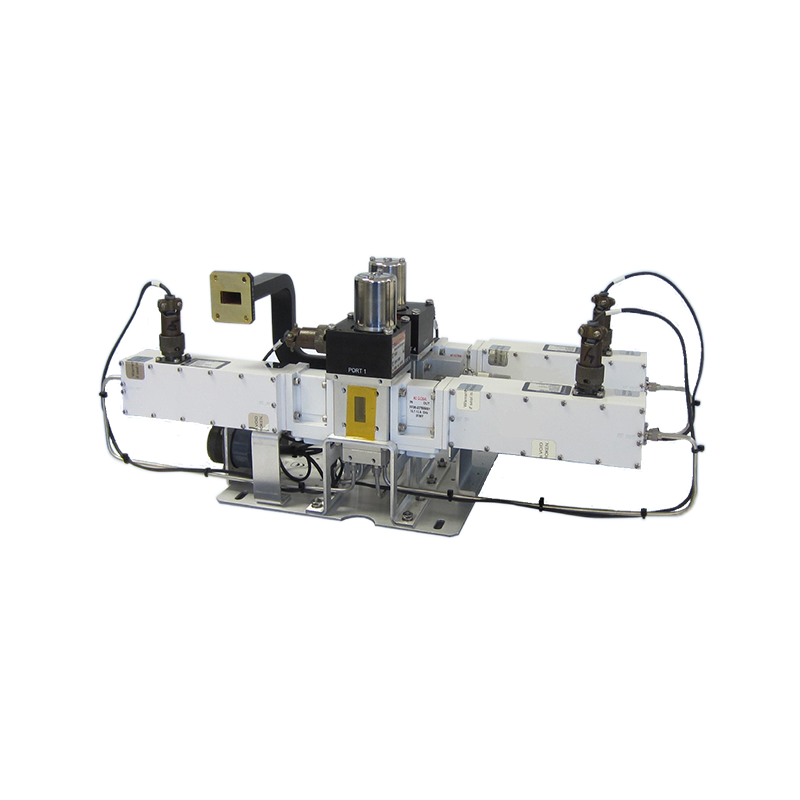

CPI LRK2XXX-XXXXXXX 1:2 Ku-Band Redundant LNA System
The CPI LRK-1000 Series 1:2 Ku-Band Redundant LNA System is engineered for high-reliability satellite reception, serving two primary signal paths with one shared standby LNA. With support for dual-polarization and automatic switching in the event of a failure, it integrates a rugged outdoor plate assembly and intelligent indoor controller with SNMP and serial/parallel I/O support. Customizable with input/output couplers, filters, and multiple gain/noise temperature options.
Key Features:
Frequency Range: 10.95–12.75 GHz or 10.70–12.75 GHz
Supports two polarizations with one standby LNA
Configurable noise temperatures: 65K to 90K
Gain: Typ. 63 dB (Option for 50 dB)
Output Compression: Up to +20 dBm
Redundant controller with remote and local control options
Front-panel and network-based auto/manual switching
Full fault monitoring with external alarm integration
CPI LRK2XXX-XXXXXXX
- Band
- Ku Band
- Component Type
- LNA
- Redundancy
- 1:2
