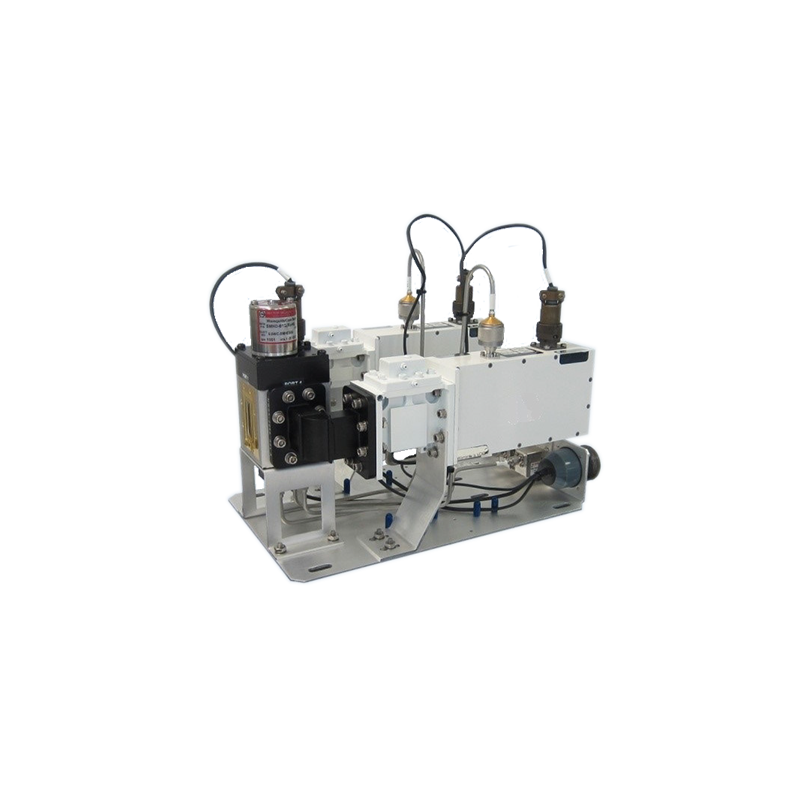

CPI LRX1XXX-XXXXXXX X-Band 1:1 Redundant LNA System
The CPI LRX-1000 Series 1:1 Redundant LNA System is designed to maximize reliability in X-Band satellite communications by incorporating automatic switchover between a primary and a standby LNA. Operating across 7.25–7.75 GHz, this system delivers exceptional performance with a noise temperature as low as 45K or 50K and up to 60 dB gain. It features robust waveguide input, N-type output connectors, and integrated transmit reject filters and couplers. The included rack-mount controller supports SNMP, RS-232/422/485, and parallel I/O, offering full local or remote M&C functionality.

Key Features

Frequency Range: 7.25–7.75 GHz
Gain: 58 dB typ., 60 dB max
Noise Temp: 45K or 50K at +23°C
Redundant 1:1 configuration with auto/manual switchover
Transmit reject filters and couplers (optional)
Dual redundant power supplies
SNMP v1/v2c/v3, Ethernet, and serial I/O support
CE and RoHS compliant

CPI LRX1XXX-XXXXXXX
Band
X Band
Component Type
LNA
Redundancy
1:1
