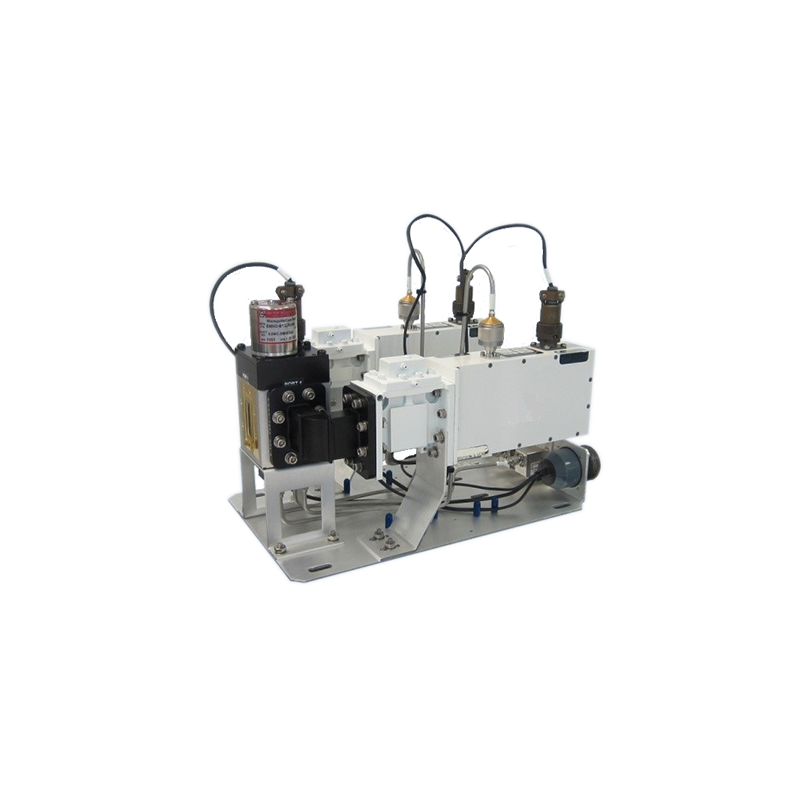

CPI LRX2XXX-XXXXXXX X-Band 1:2 Redundant LNA System
The CPI LRX-1000 Series 1:2 Redundant LNA System provides dependable dual-polarization signal reception with automatic switchover among two primary LNAs and one standby. Designed for X-Band 7.25–7.75 GHz, this system offers flexible configuration with options for transmit reject filters, input/output couplers, and offline I/O. Ideal for dual-feed satellite systems, the LRX-1000 ensures minimal signal interruption and supports full SNMP, Ethernet, and serial-based remote monitoring and control.

Key Features

Frequency Range: 7.25–7.75 GHz
Dual input, dual output with shared standby
Noise Temp: 45K or 50K (additive system values vary)
Optional 50 dB gain, +20 dBm P1dB, and reject filters
Full-featured 1RU controller with GUI, M&C interfaces
Parallel, Ethernet, and serial remote control
Switch plate rated for -40°C to +60°C
CE marked and RoHS compliant

CPI LRX2XXX-XXXXXXX
Band
X Band
Component Type
LNA
Redundancy
1:2
