CPI LRS1XXX-XXXXXXX 1:1 S-Band Redundant LNA System

CPI LRS1XXX-XXXXXXX 1:1 S-Band Redundant LNA System

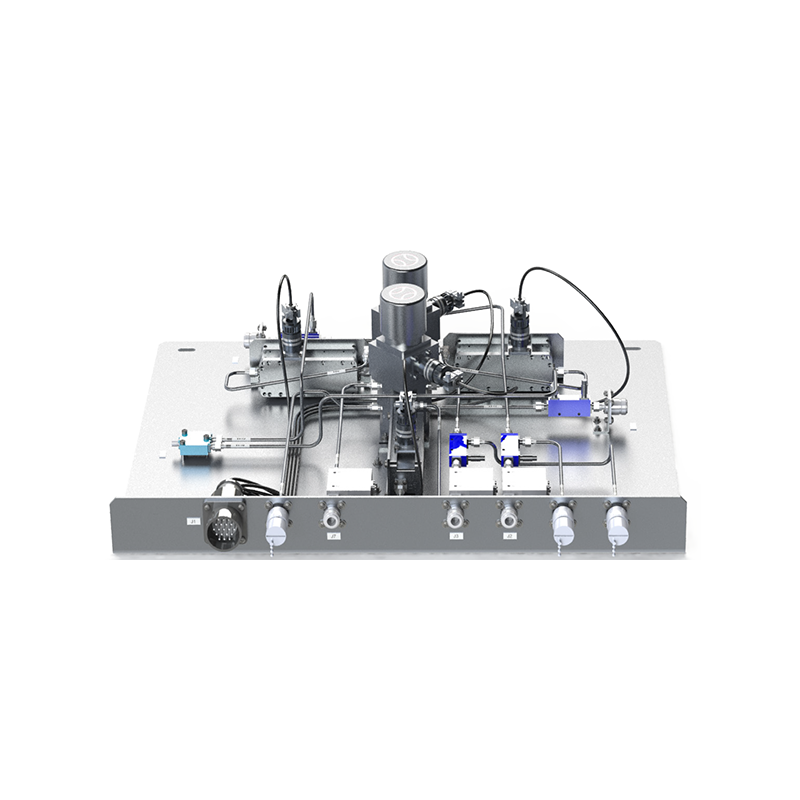

The CPI LRS-1000 1:1 S-band redundant LNA system minimizes receiver downtime by automatically switching from the primary LNA to a dedicated standby LNA when a failure is detected. Covering 2100–2500 MHz, the system combines two CPI LSH-2000 Series low noise amplifiers, an outdoor plate assembly, an indoor redundancy controller and an interconnecting control cable.

System Configuration: 1:1 redundancy
LNA Configuration: One primary LNA and one standby LNA
Frequency Range: 2100–2500 MHz
LNA Noise Temperature: 35 K
Standard System Noise Contribution: 37 K, excluding LNA
System Noise with Input Coupler: 60 K, excluding LNA
Gain: 57 dB min., 60 dB typ.
Gain Match Between LNAs: 2 dB max.
Gain Flatness: ±0.75 dB over the full band; ±0.30 dB per 10 MHz
Output P1dB: +8 dBm min., +10 dBm typ.
Output OIP3: +18 dBm min., +20 dBm typ.
Input VSWR: 1.80:1 typ., 1.90:1 max.
Output VSWR: 1.25:1 max.
RF Input Connector: Type N female
RF Output Connector: Type N female
Plate Assembly Power: 11–15 VDC; 12 VDC typ.; 6 W typ.
Automatic Switchover Time: 100 ms max.
Network Interface: 10/100Base-T Ethernet
Remote M&C: SNMP v1, v2c and v3; RS-232, RS-422, RS-485 and parallel I/O
Controller Power: 100–135 or 180–240 VAC, 47–63 Hz
Plate Operating Temperature: -40°C to +60°C
Compliance: CE certified, RoHS compliant and EAR99

Key Features:

• Dedicated standby LNA protects one primary receiver path

• Automatic switchover following primary LNA failure

• 2100–2500 MHz S-band frequency coverage

• CPI LSH-2000 Series S-band low noise amplifiers

• Low 35 K LNA noise temperature

• High-quality dual coaxial RF switches

• Outdoor antenna-hub plate assembly

• Manual or automatic operation

• Manual RF-switch override

• LNA current and external-alarm monitoring

• User-selectable current tolerance window

• Dual redundant controller power supplies

• Front-panel system and switch-status display

• Standard output coaxial isolator

• Optional -30 dB input coupler

• Optional -20 dB output coupler

• Optional terminated offline input and output

• Ethernet, serial and parallel remote control

• Audible fault alarm

• Optional remote control panel for operation up to 4,000 ft. away
