CPI LRS2XXX-XXXXXXX

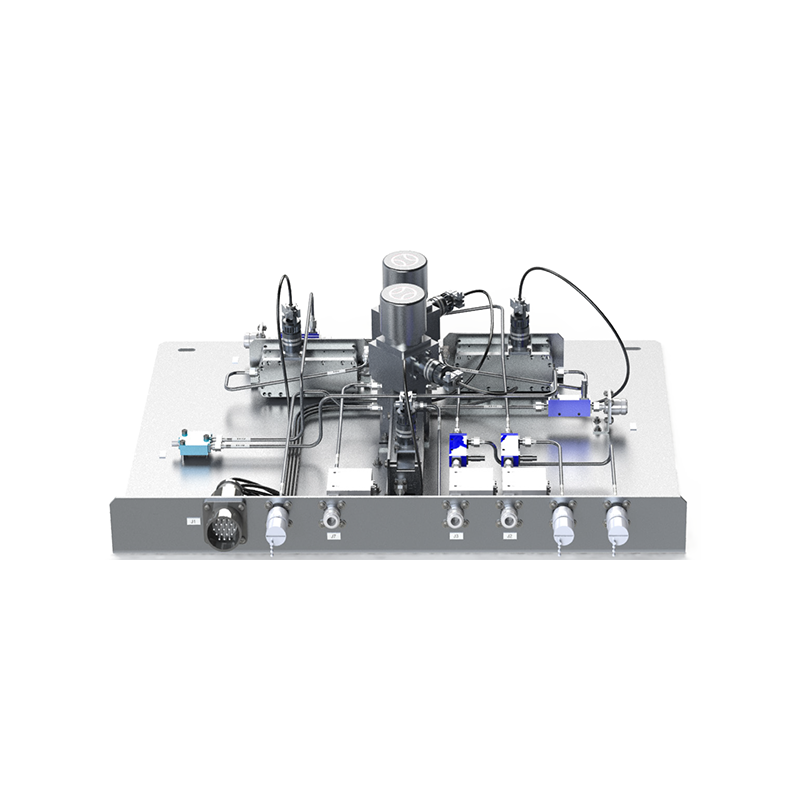

CPI LRS2XXX-XXXXXXX S-Band 1:2 Redundant LNA System

The CPI LRS-1000 Series 1:2 S-Band Redundant LNA System provides seamless signal continuity by supporting two primary LNA paths with one backup. Designed for 2100 - 2500 MHz S-Band operations, it features highly stable 60 dB gain, excellent gain matching, and optional couplers for system monitoring. The included controller enables automatic failover, SNMP and serial control, and comes in a compact rack-mountable unit with dual AC power input.

Key Features:

Frequency: 2100 - 2500 MHz (S-Band)

Dual-input, single standby LNA configuration

Gain: 57 dB min, 60 dB typ with ±0.75 dB flatness

System noise: 37 K (typ), up to 88 K with input coupler

Redundant switching controller with network & serial I/O

CE certified, RoHS compliant, and field-configurable
