CPI CPI LRL1XXX-XXXXXXX L-Band 1:1 Redundant LNA System

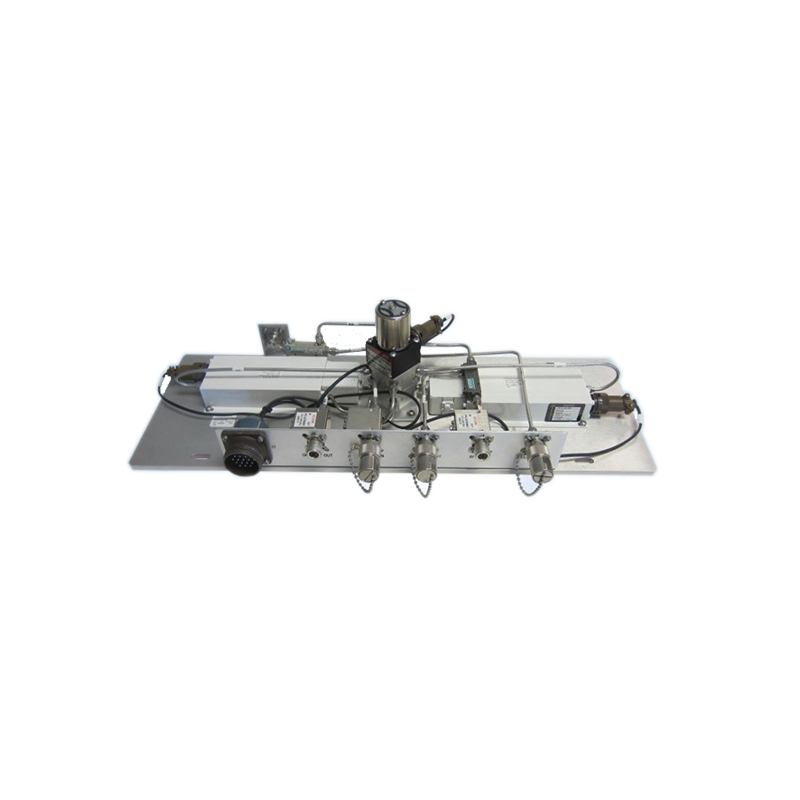

The CPI LRL-1000 Series 1:1 Redundant LNA System provides enhanced reliability for L-Band satellite signal reception. This configuration includes one active and one standby LL-1500 Series Low Noise Amplifier (LNA), with automatic switching upon fault detection to ensure continuous signal availability. The system includes a weather-sealed outdoor plate assembly with input coupler options and a rack-mount indoor control unit that supports SNMP, serial, and parallel I/O for flexible remote or local control. Designed to minimize downtime and maximize system uptime, this unit is CE certified and RoHS compliant.

Key Features:

Frequency Range: 1510–1577 MHz
Gain: typ. 51 dB (standard), typ. 61 dB (with option)
Noise Temperature (System): As low as 10 K standard
Redundant Power Supply and Dual Coaxial Switches
Supports SNMP v1/v2c/v3, RS-232/-422/-485, and Parallel I/O
-40°C to +60°C outdoor rated assembly
