CPI LRL2XXX-XXXXXXX

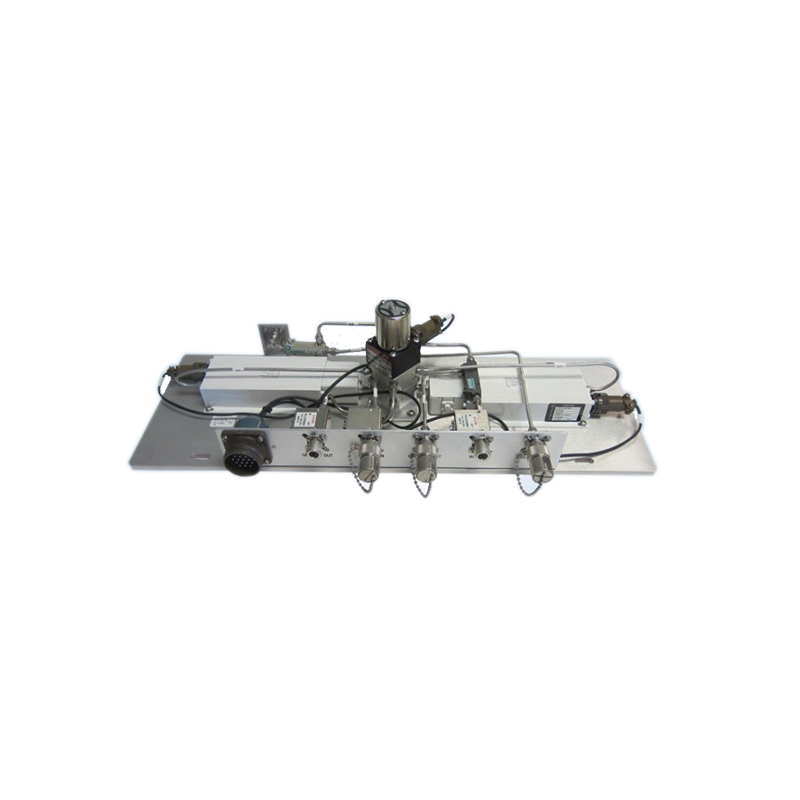

CPI LRL2XXX-XXXXXXX L-Band 1:2 Redundant LNA System
The CPI LRL-1000 Series 1:2 Redundant LNA System ensures maximum operational continuity by protecting two active signal chains with a single standby LNA. The outdoor plate assembly includes dual polarizations (Pol 1 and Pol 2), automatic coaxial switching, and optional couplers. The system is controlled by a powerful 1 RU indoor controller capable of monitoring current levels, alarms, and environmental parameters. It features extensive connectivity options and supports system failover within 100 ms, making it ideal for mission-critical satellite earth stations.

Key Features:

Frequency Range: 1510–1577 MHz
Gain: typ. 51 dB (standard), typ. 61 dB (with option)
Noise Temperature (System): 15–26 K standard, configurable
Triple LNA configuration with flexible switch matrix
SNMP, serial, and parallel M&C interface
CE compliant, RoHS certified
