LKA20S120-XXXXX Ka-Band LNA | 18.2–20.2 GHz, 120 K, 60 dB Gain

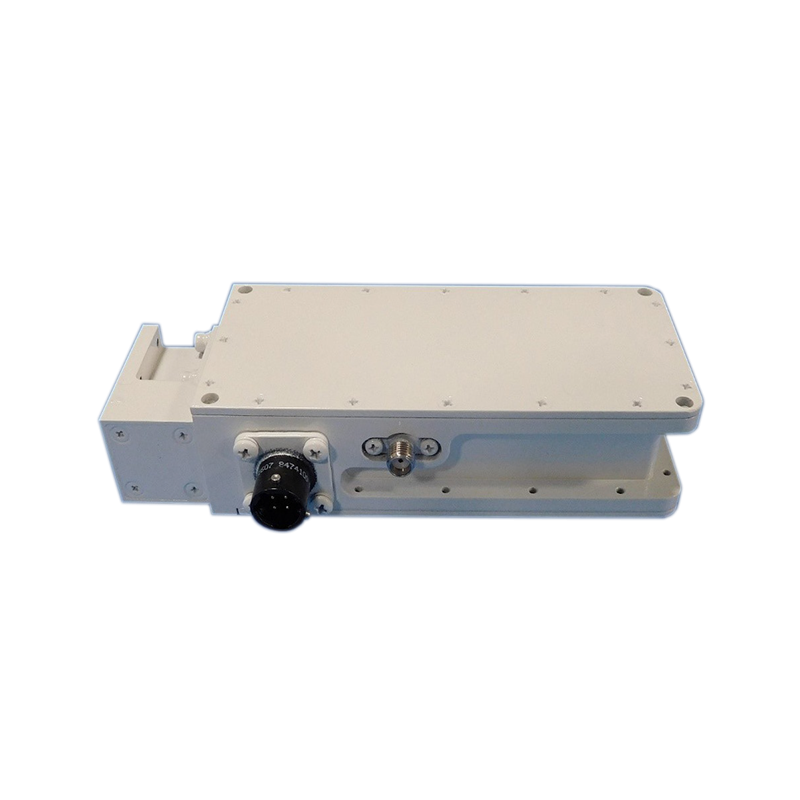

The CPI LKA20S120-XXXXX is a Ka-band Low Noise Amplifier covering 18.2–20.2 GHz, delivering ultra-low noise temperature of 120 K and high gain of 60 dB. Designed for satellite earth stations and telecom applications, it features temperature-compensated gain, built-in input/output isolators, and high-reliability HEMT design. With a rugged WR42 input and SMA output, the LNA ensures outstanding performance over –40°C to +70°C environments. Optional configurations include +20 dBm output power and AC power input.
Key Features:
Frequency Range: 18.2–20.2 GHz (Band A)
Noise Temperature: 120 K
Gain: 60 dB typ.
Input/Output VSWR: 1.25:1 / 1.40:1 typ.
Output Power (P1dB): +12 dBm min
Power Input: +11 to +28 VDC
Connectors: WR42 input, SMA (F) output
Operating Temp: –40°C to +70°C
Internal isolators, gain compensation, reverse polarity protection
Form ‘A’ alarm standard
LKA20S120-XXXXX
- Frequency Range
- 18.2–20.2 GHz
- Noise Temperature
- 120 K
- Gain
- 60 dB
- Output Power
- +12 dBm
- Finish Color
- Commercial White
- Power Configuration
- +11 to +28 Vdc
