CPI TLNB20000X.0007 | X-Band Low Noise Block Downconverter

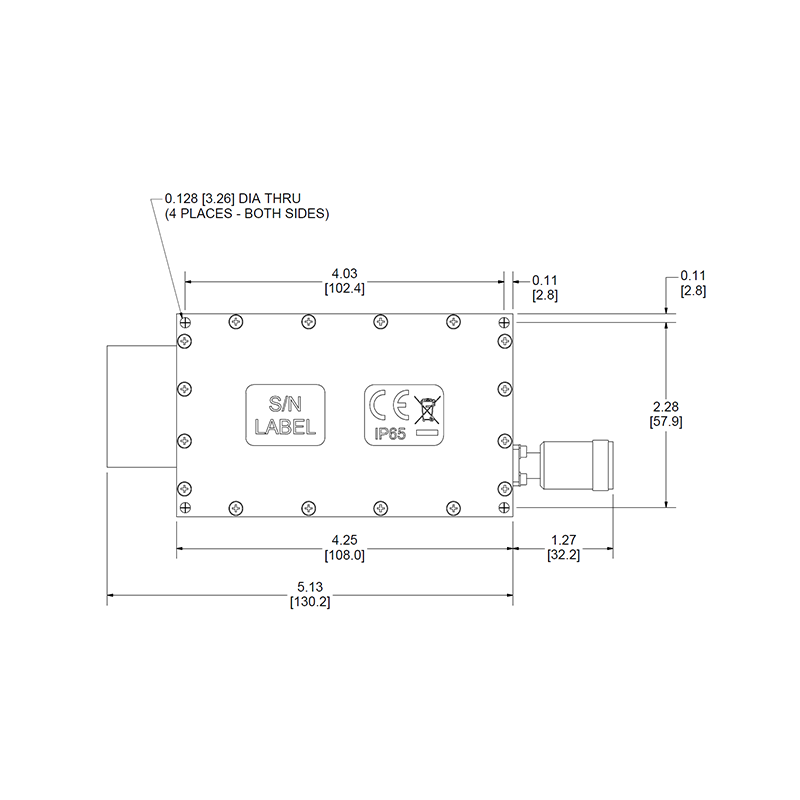

The TLNB20000X.0007 is an X-Band low noise block downconverter (LNB) designed to downconvert 7.25–7.75 GHz input signals to 950–1450 MHz output. It features an integrated phase-locked oscillator and is suitable for satellite earth station receive systems.

Key Specifications:

Input Frequency: 7.25 – 7.75 GHz

Output Frequency: 950 – 1450 MHz

LO Frequency: 6.30 GHz

Noise Figure: 0.85 dB typical

Conversion Gain: 60 dB typical

Gain Flatness: ±1.0 dB over full band

Output P1dB: +5 dBm minimum

Output VSWR: 2.0:1 maximum

Input VSWR: 2.5:1 maximum

Output Connector: Type N (f)

Input Connector: WR112 waveguide, CPR112G flange

Power Supply: +15 to +24 VDC

Operating Temperature: -40°C to +60°C
