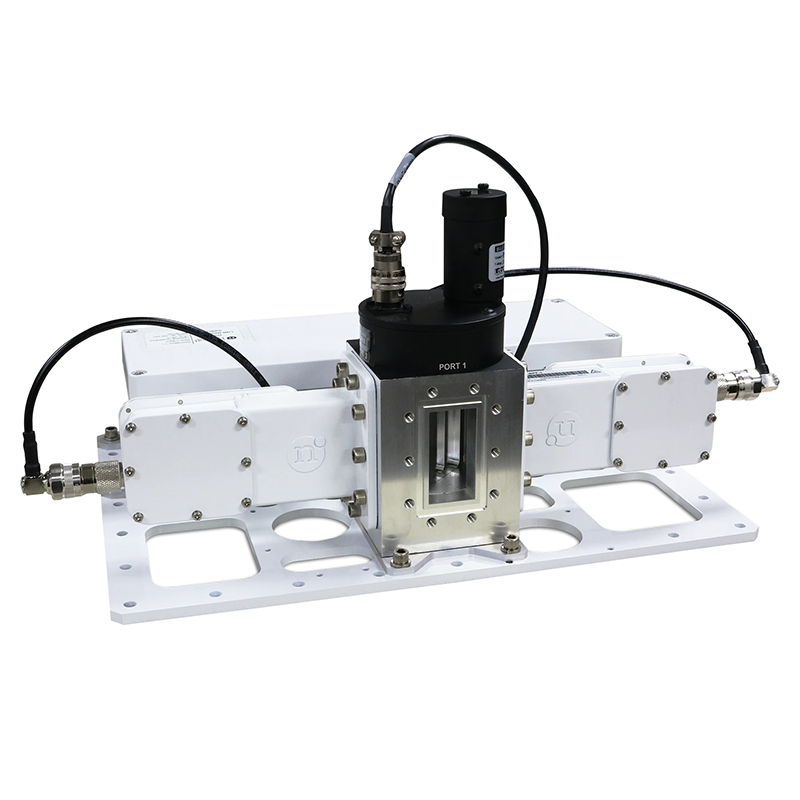

Norsat RSLNBC11N – 1:1 C-Band LNB Redundant Switch System

Norsat RSLNBC11N C-Band 1:1 LNB Redundant Switch System

The Norsat RSLNBC11N is a C-Band 1:1 LNB redundant switch system that ensures continuous satellite service by automatically switching between primary and backup LNBs. With fast switchover and rugged IP66-rated housing, it supports N-conn LNBs up to quad-band for dependable SATCOM operation.

Band: C-Band
Redundancy: 1:1
Switchover Time: 550 ms max
Supported LNBs: N-conn LNBs up to Quad-band, non-simultaneous-band (sold separately)
Input Frequency: 950–2150 MHz
Insertion Loss: ≤0.5 dB (Waveguide to LNB), ≤2.8 dB (LNB to cable)
Input Connector: WR-229
Output Connector: N-Type, 50 Ohm
Power: 100–240 VAC, 50–60 Hz
Environmental: -40°C to +60°C operating; -50°C to +80°C storage; 8–100% humidity; IP66
Dimensions: 412.75 x 304.80 x 224.54 mm; Weight: 6.8 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
