Norsat RSLNBXSC11T3 – 1:1 C-Band LNB Redundant Switch System

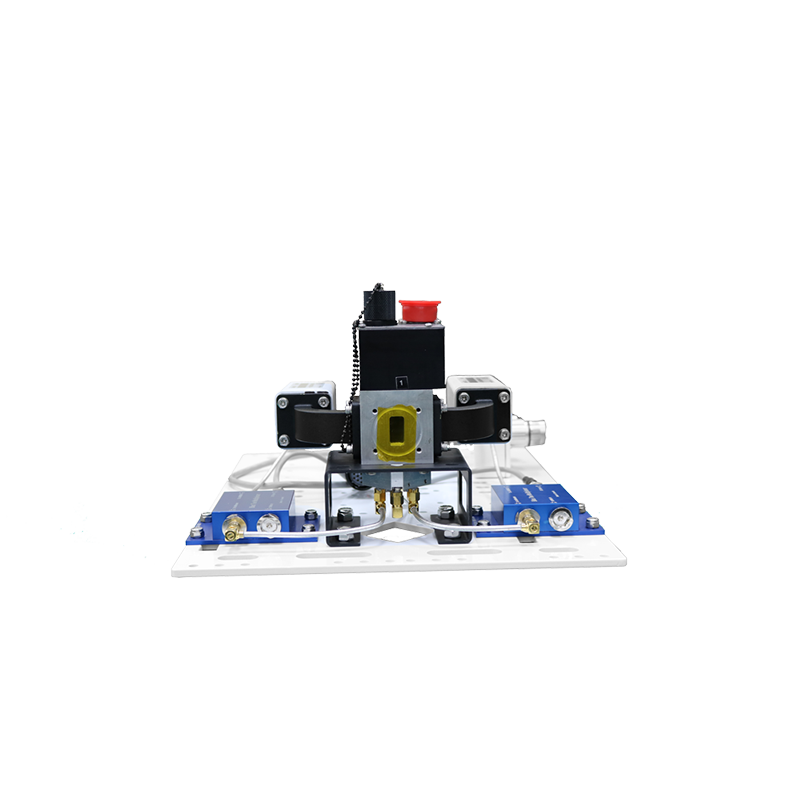

Norsat RSLNBXSC11T3 C-Band 1:1 LNB Redundant Switch System

The Norsat RSLNBXSC11T3 is a C-Band 1:1 LNB redundant switch system designed to maintain continuous SATCOM service by switching automatically between primary and backup LNBs. Supporting external reference single-band LNBs, it is optimized for Tx/Rx operation with 30 m IFL and delivers fast 120 ms switchover time.

Band: C-Band

Redundancy: 1:1
Switchover Time: 120 ms max
Supported LNBs: External reference, single-band (sold separately)
Tx/Rx Configuration: Tx/Rx with 30 m IFL
Input Connector: WR-229
Output Connector: N-Type
Insertion Loss: ≤0.5 dB max
Input VSWR: LNB dependent
Power: 90–264 VAC, 47–63 Hz
Environmental: -40°C to +60°C operating; <100% humidity
Dimensions: 483 x 159 x 295 mm; Weight: 9 kg
Packaging: 660 x 610 x 736 mm; 54.8 kg
Made in Canada; ECCN: EAR99; HS Code: 8517690000
